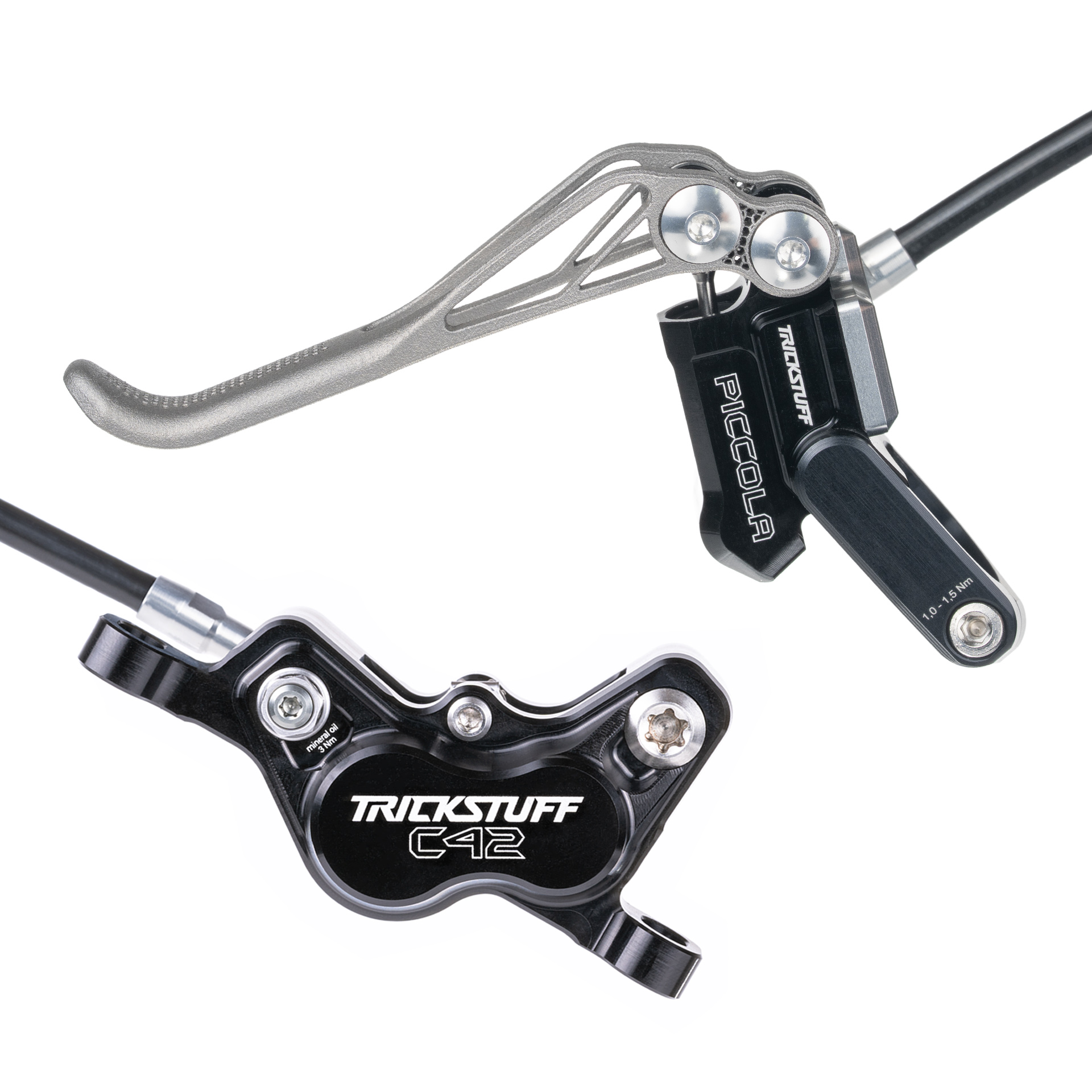

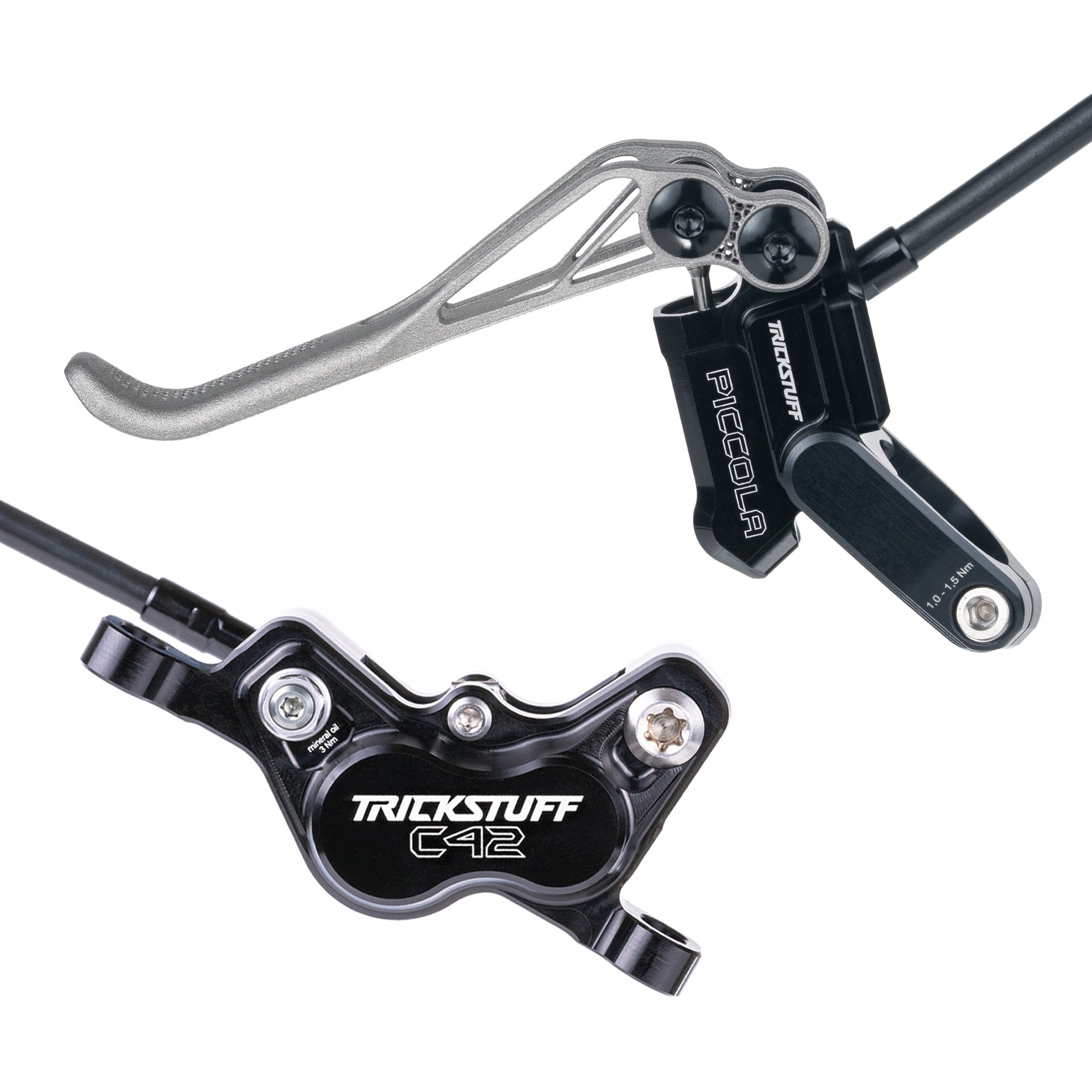

TRICKSTUFF PICCOLA HD TITANIUM

HYDRAULIC DISC BRAKE

PCA-Pumps; reach adjustment by 2mm Allen key
Body: Aluminium black; leverblade: Titan
Lever pivot bolts: Aluminium
Reservoir cap: Aluminium

Hose-fitting pump: Angled
Hose-fitting caliper: Banjo

Hose front brake: Kevlar black 900mm
Hose rear brake: Kevlar black 1,700mm

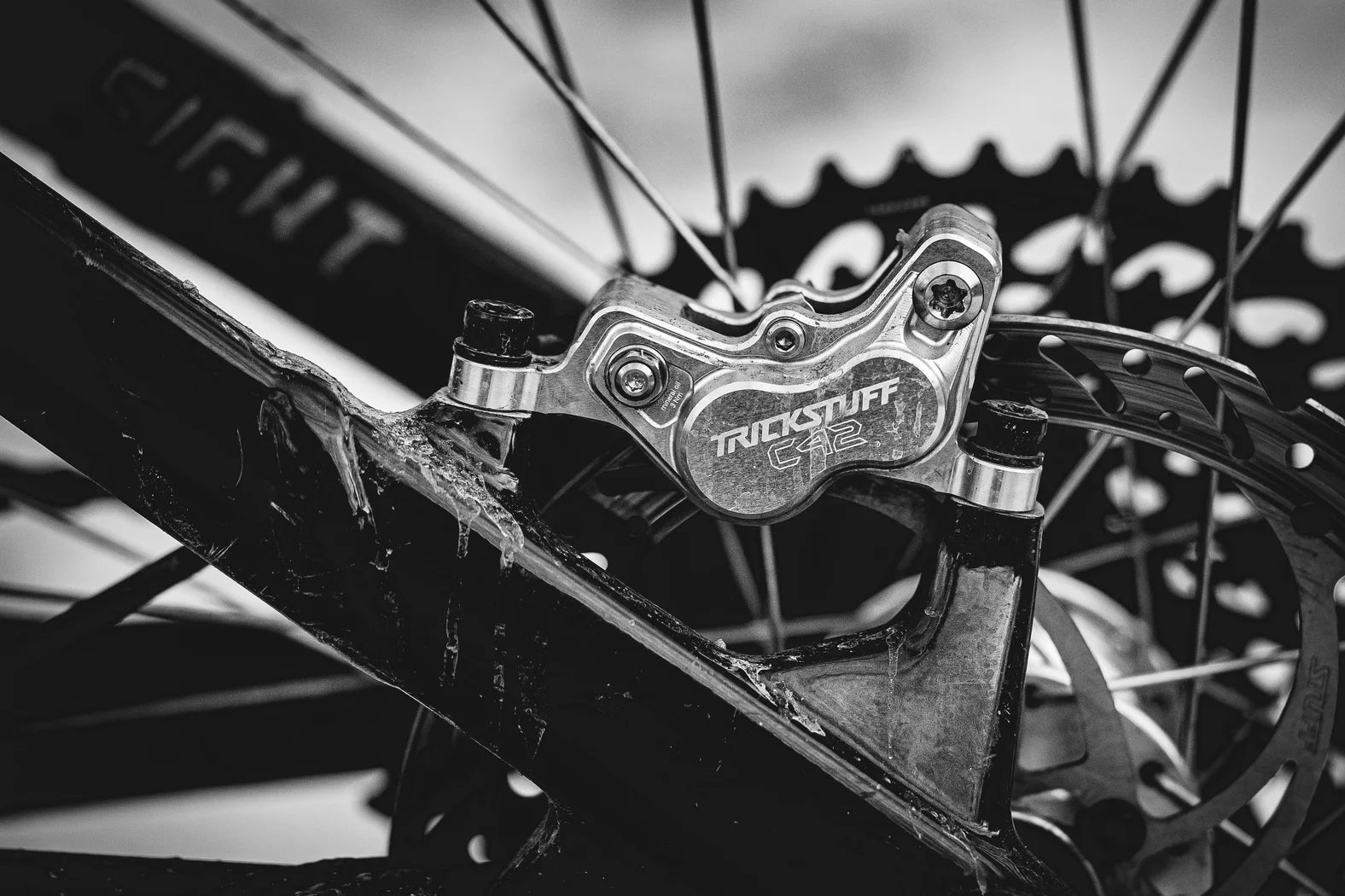

Caliper front brake: C42 Aluminium black 4-Piston Postmount
Caliper rear brake: C42 Aluminium black 4-Piston Postmount

Actuation: left - front, right - rear; hydraulic; oil
Standardized system weight: 177g

Included: Brake-Set, CNC clamps, Pads 850 POWER+, Mounting hardware,
M4-Bleed-Adapter, Pads 850 STANDARD

unique honeycomb structure with its tailored surface texture provides plenty of grip — even without gloves.Hollow printed structures further reduce weight while maintaining impressive strength.

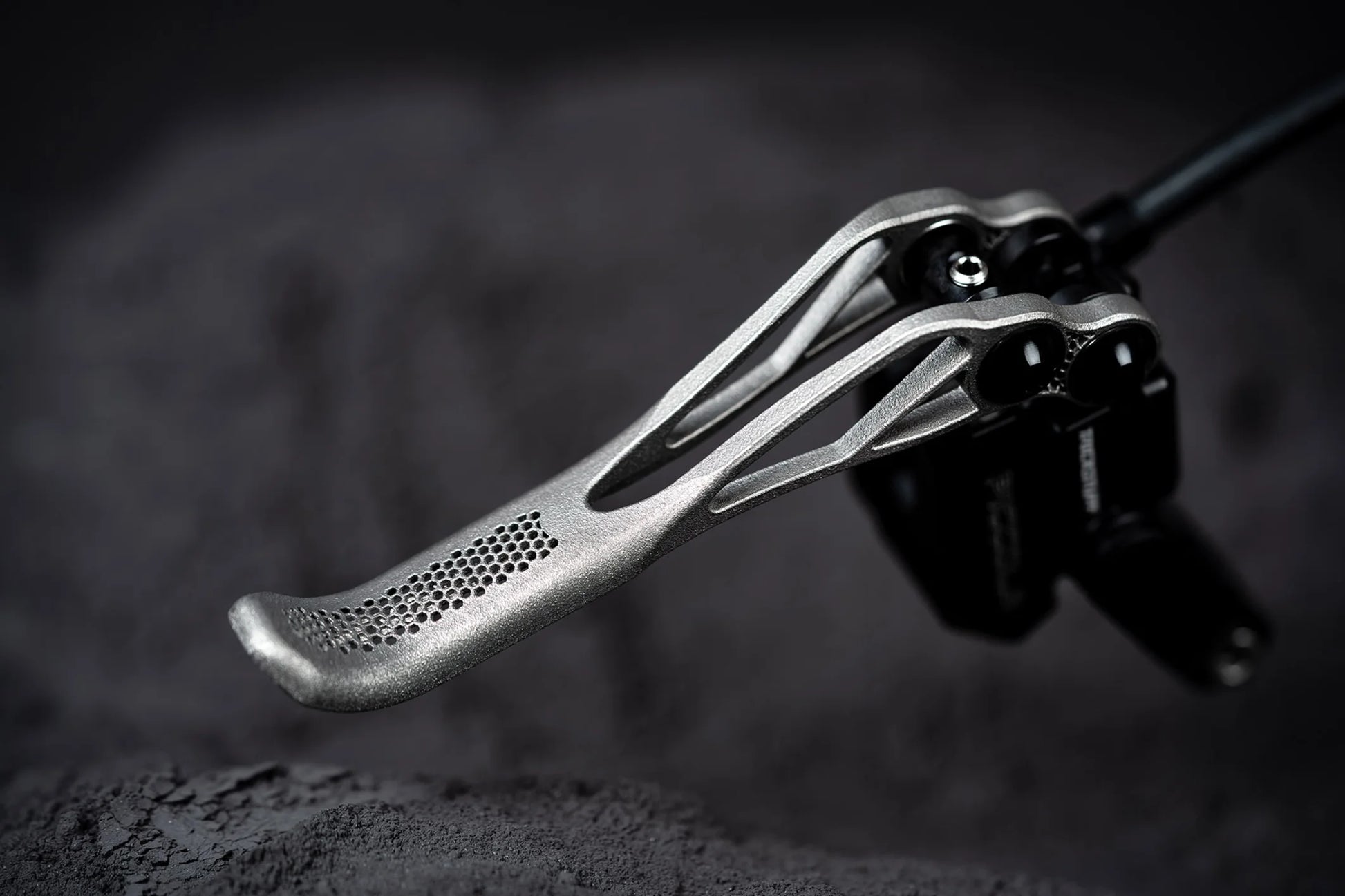

THE LEVER

The lever is crafted from titanium, a material known for its exceptional fracture toughness and corrosion resistance. As a go-to choice in highly demanding industries, such as medical technology and aerospace, the material offers significant advantages. Thanks to its higher strength compared to aluminum, less material is needed to achieve the same physical performance. While titanium isn’t inherently lighter than aluminum, the use of additive manufacturing enables the design of a lever that’s both lighter and stronger overall.

Inside, partially hollow printed structures further reduce weight while maintaining impressive strength. Titanium doesn’t react to moisture or sweat, so there’s no need for extra coatings to protect against corrosion.

The contact surface features a unique honeycomb structure that’s impossible to create with traditional machining. This design not only reduces weight, in combination with the optimized surface texture it also provides a grippy texture for secure handling, even without gloves.

Titanium is known for its exceptional fracture toughness and corrosion resistance and a go-to choice in highly demanding industries, such as medical technology and aerospace.

Thanks to its higher strength compared to aluminum, less material is needed to achieve the same physical performance. While titanium isn’t inherently lighter than aluminum, the use of additive manufacturing enables the design of a lever that’s both lighter and stronger overall

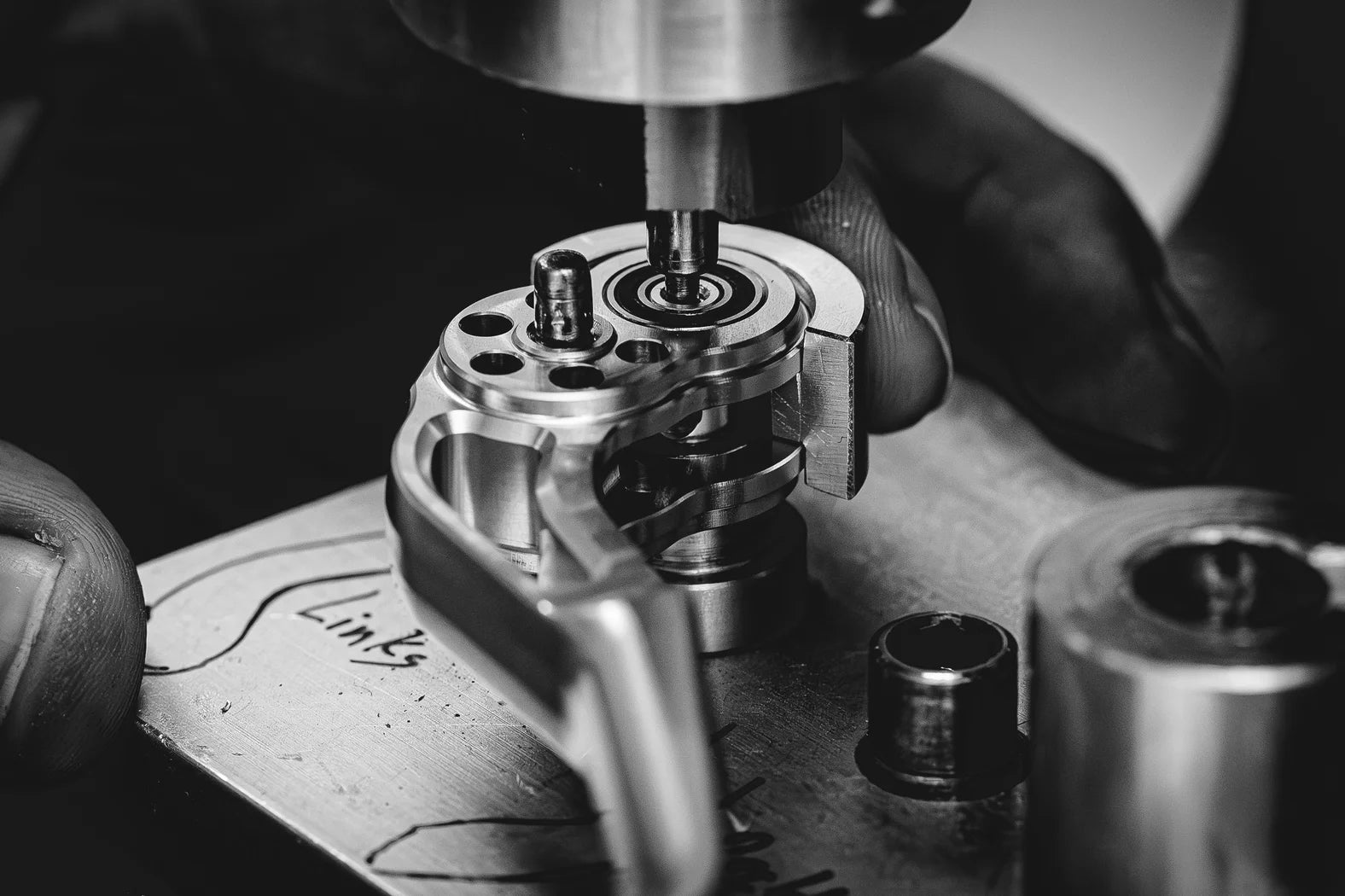

BALL BEARING BRAKE LEVERS

All brake pumps from Trickstuff brakes are equipped with four ball bearings: two in the main pivot and two for the connecting rod. The ball bearings are characterized by low and constant friction over the entire rotation range of the lever. While the ball bearings prevent radial lever play, a tiny ball made of POM plastic, which is clamped in the barrel nut, ensures that Trickstuff brake levers also have no axial play. The resulting complete lack of play and constant low friction provides a predictable braking characteristic that enables precise control of the braking force

ANDONIZED 7075 ALUMINUM

The pump and caliper housings are made of high-quality, high-tensile milled-CNC 7075 aluminum. Anodizing the components increases the surface hardness and provides scratch and corrosion resistance.

The anodization extends into the piston track, which not only is very durable, but also has improved friction properties through subsequent polishing. A low-friction and consistent running of the mechanism is assured.
