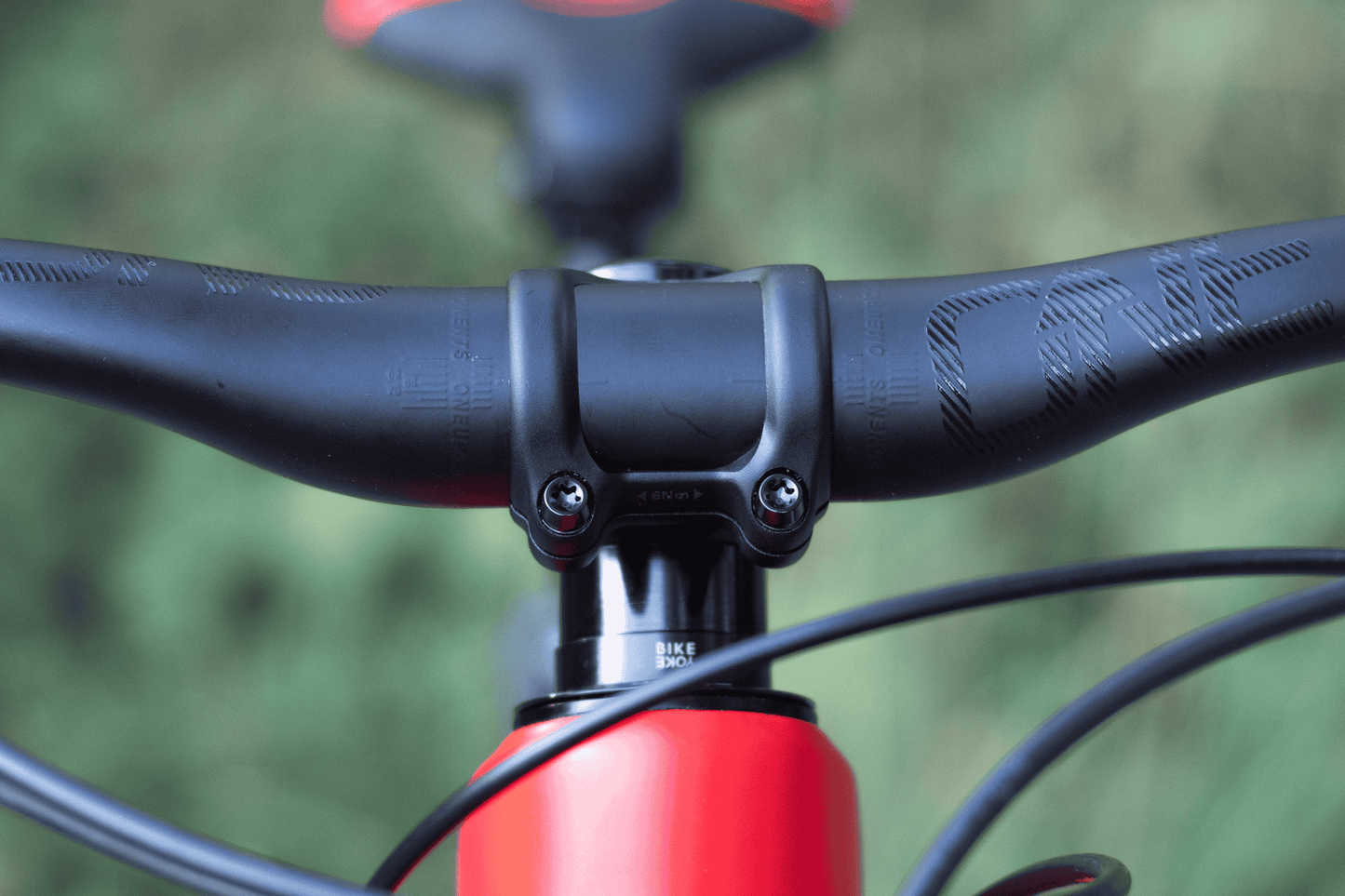

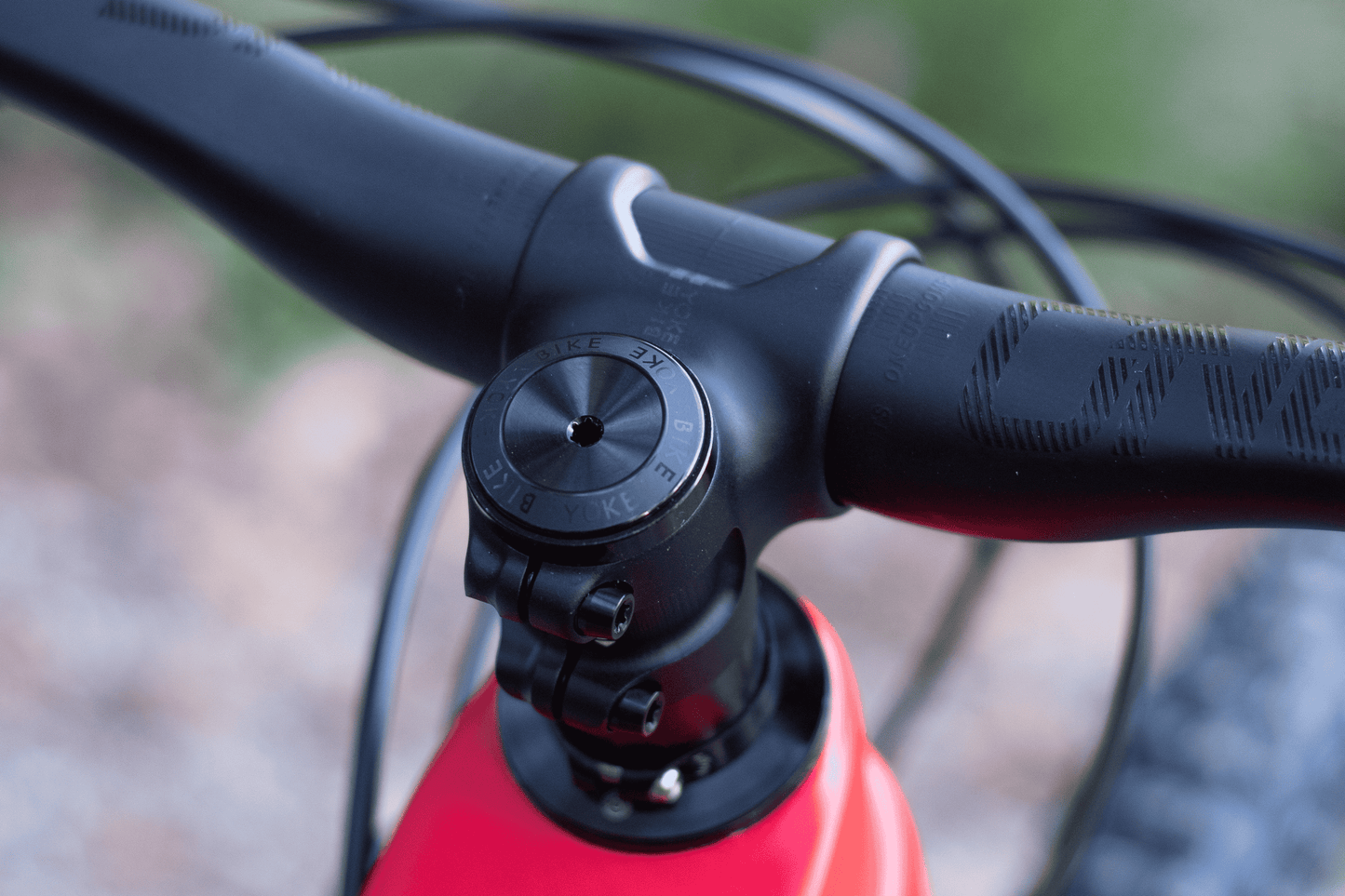

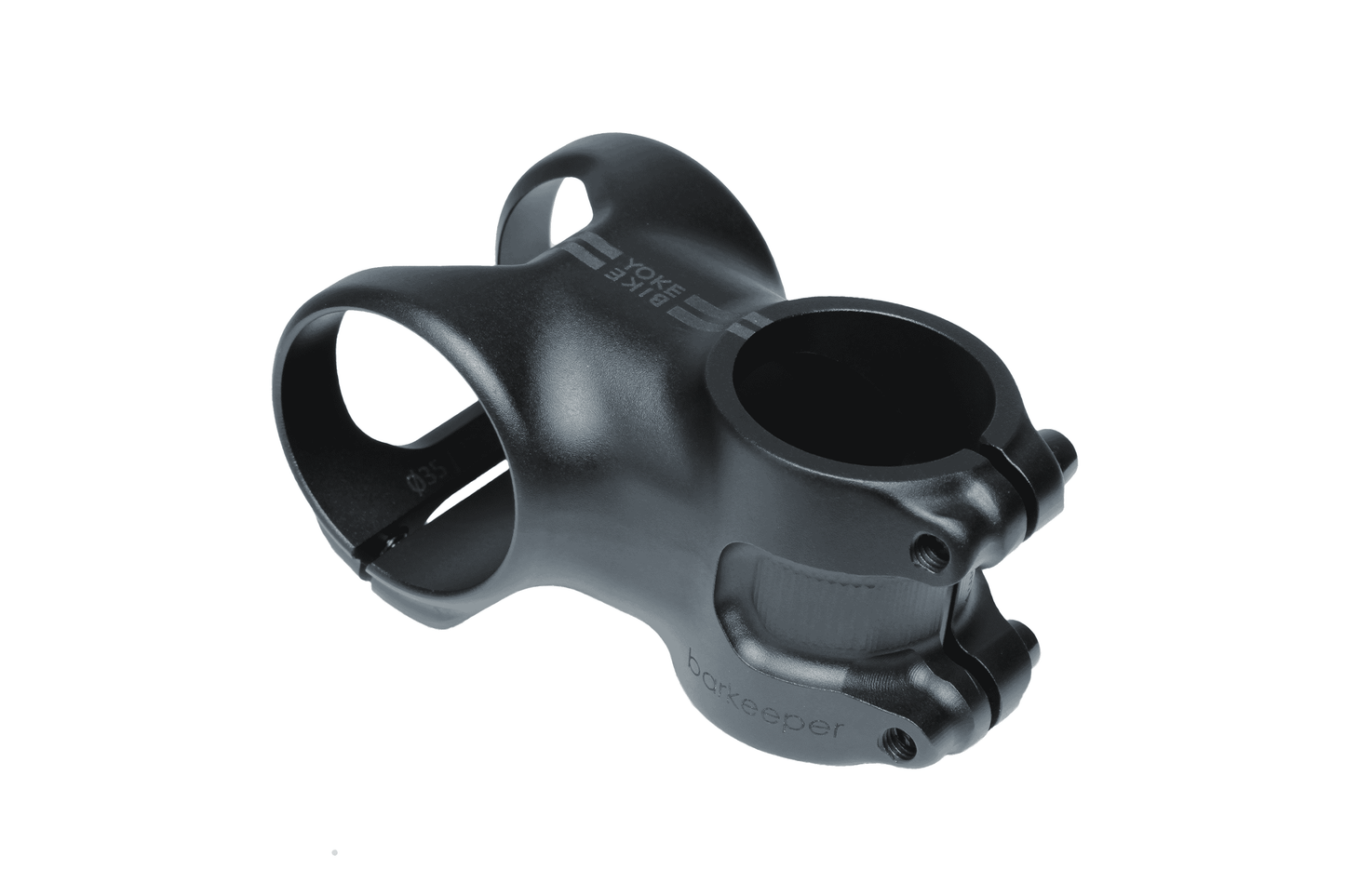

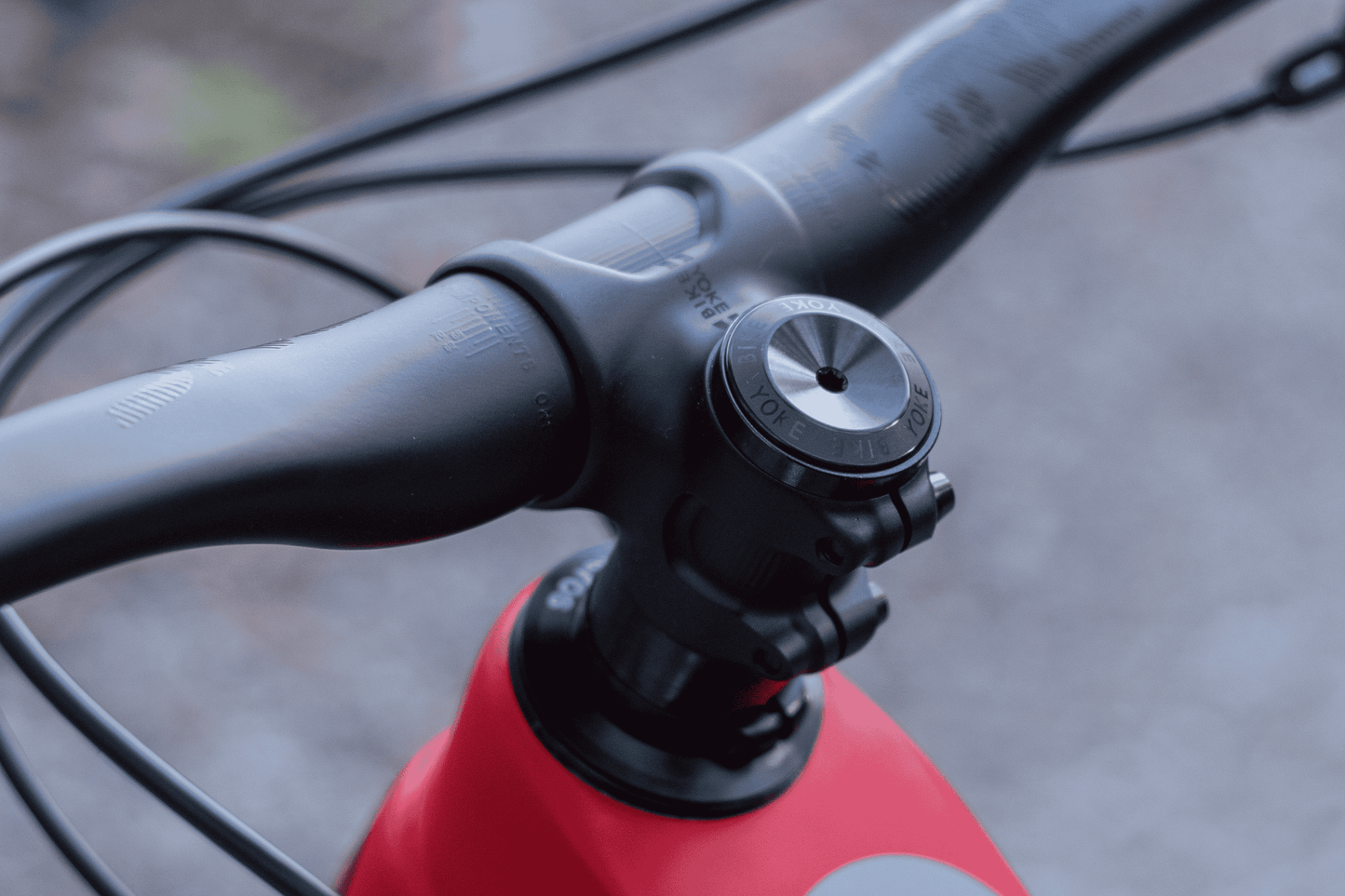

A great look and an exceptional strength-to-weight ratio are the main features of our Barkeeper stem.
This fact is also due to the complex production of this high-quality masterpiece, which requires much effort and precision and involves various demanding tasks, such as
-
precise forging process
-
Multi-tempering
-
CNC machining of cristical contact interfaces
-
Shot peening for surface hardening
-
Laser engraving
-

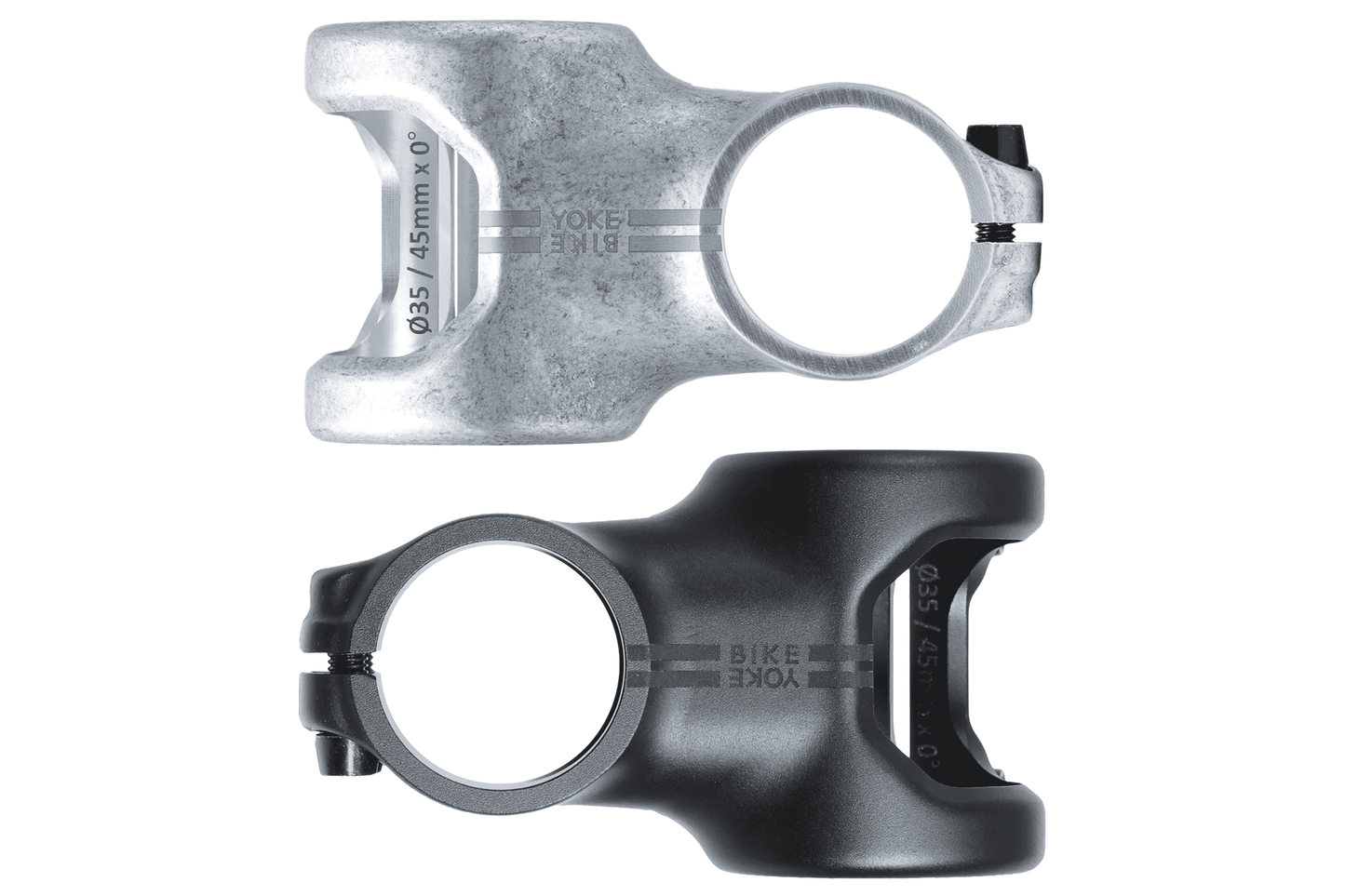

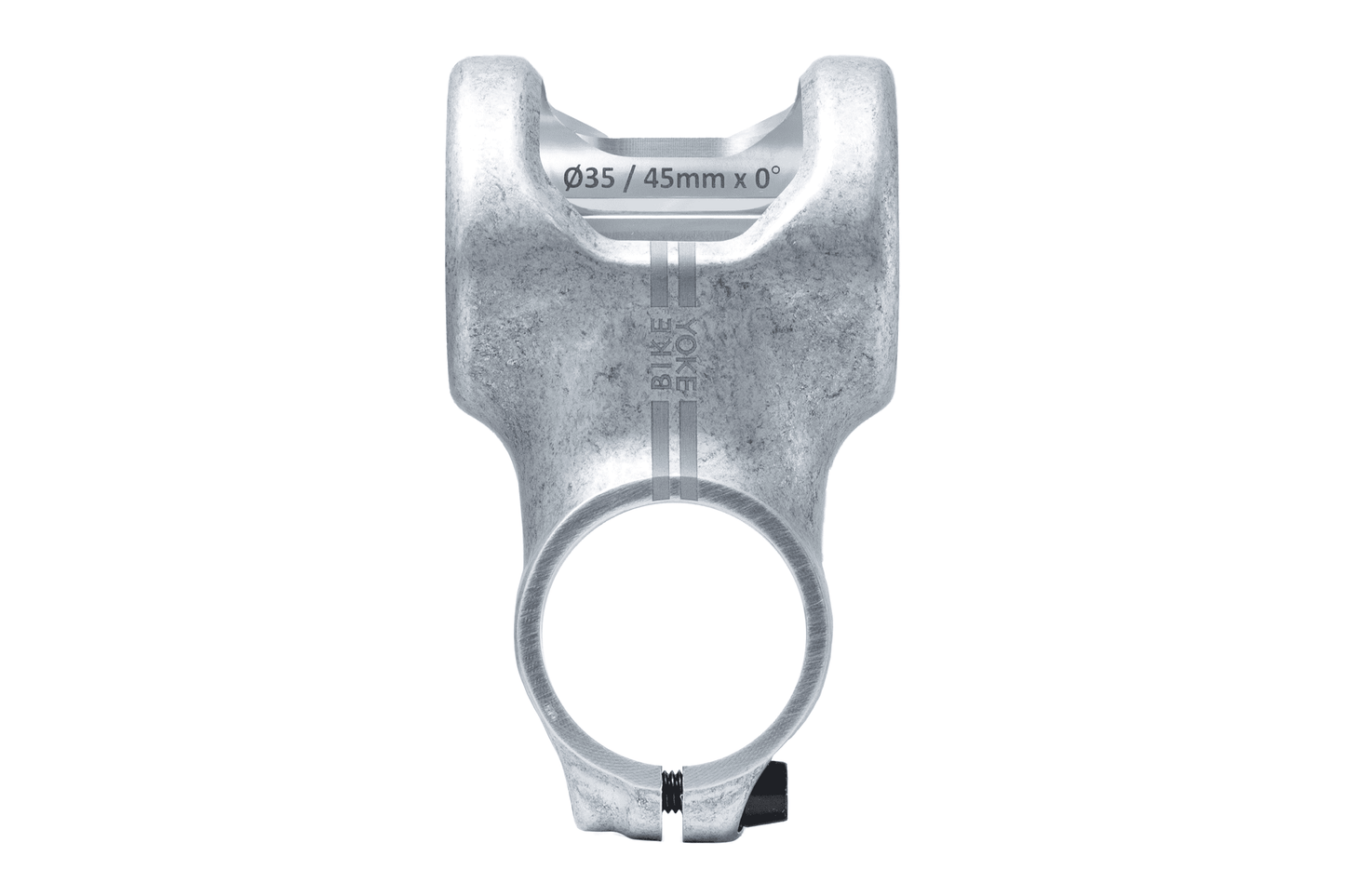

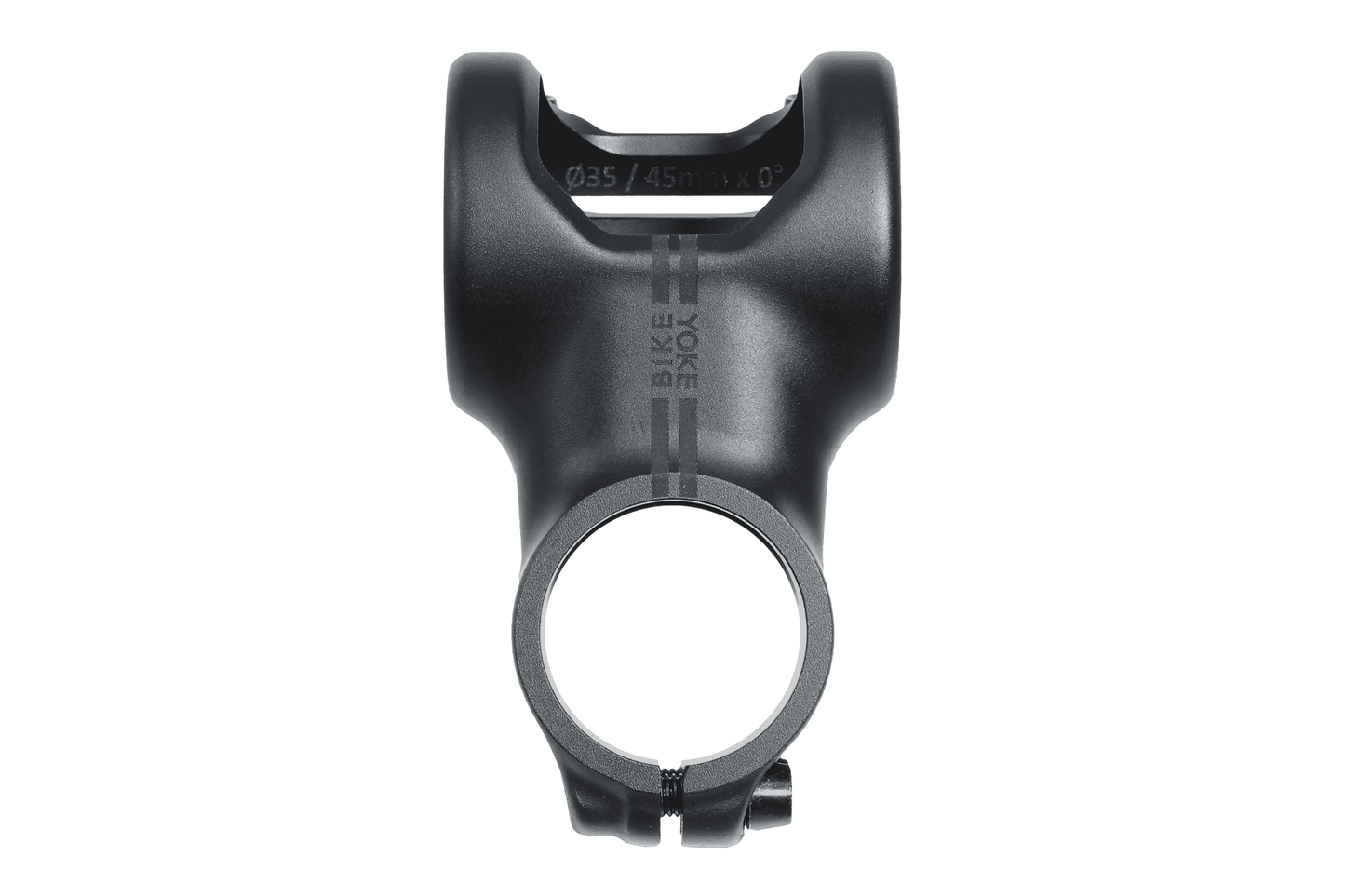

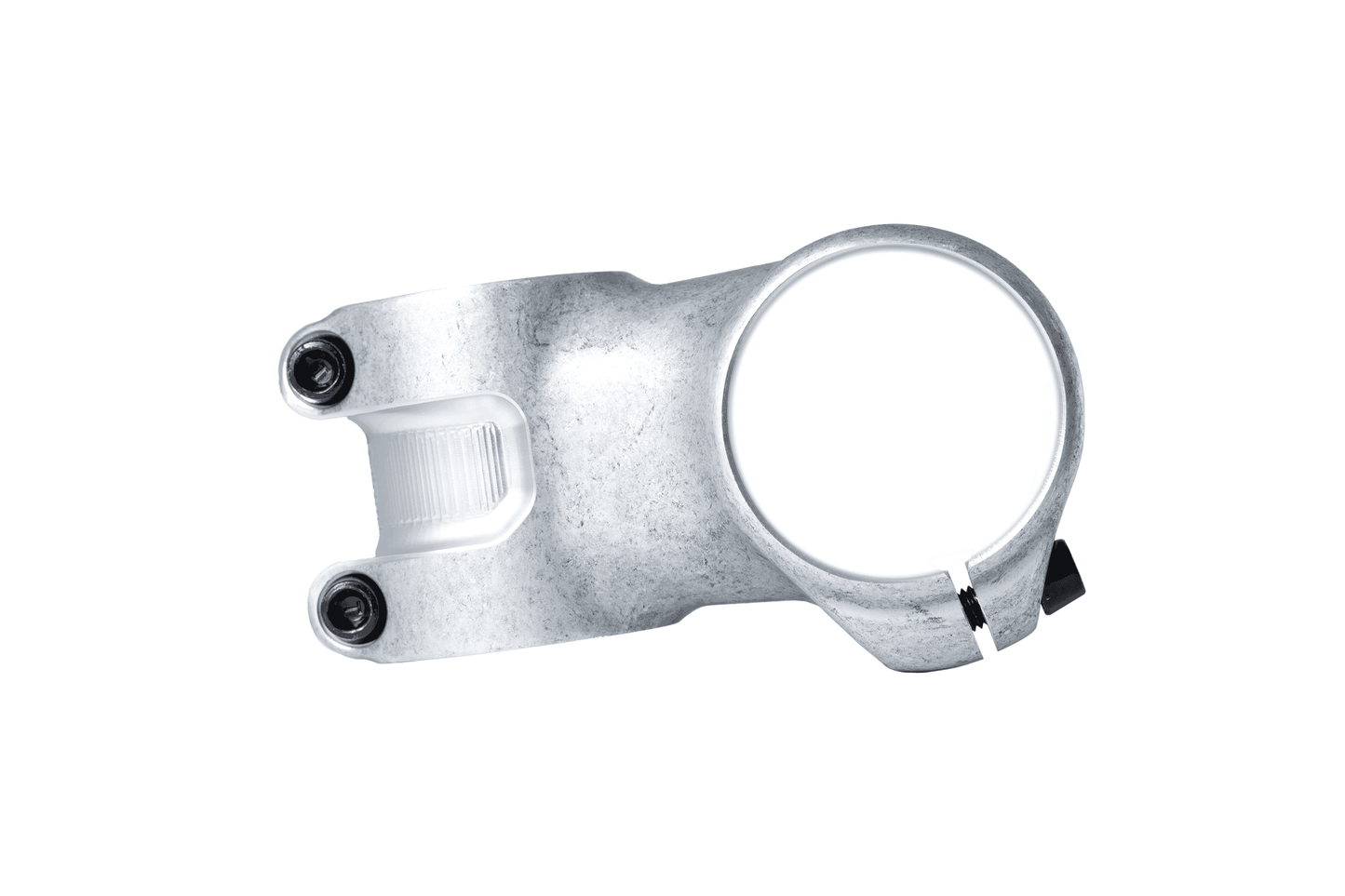

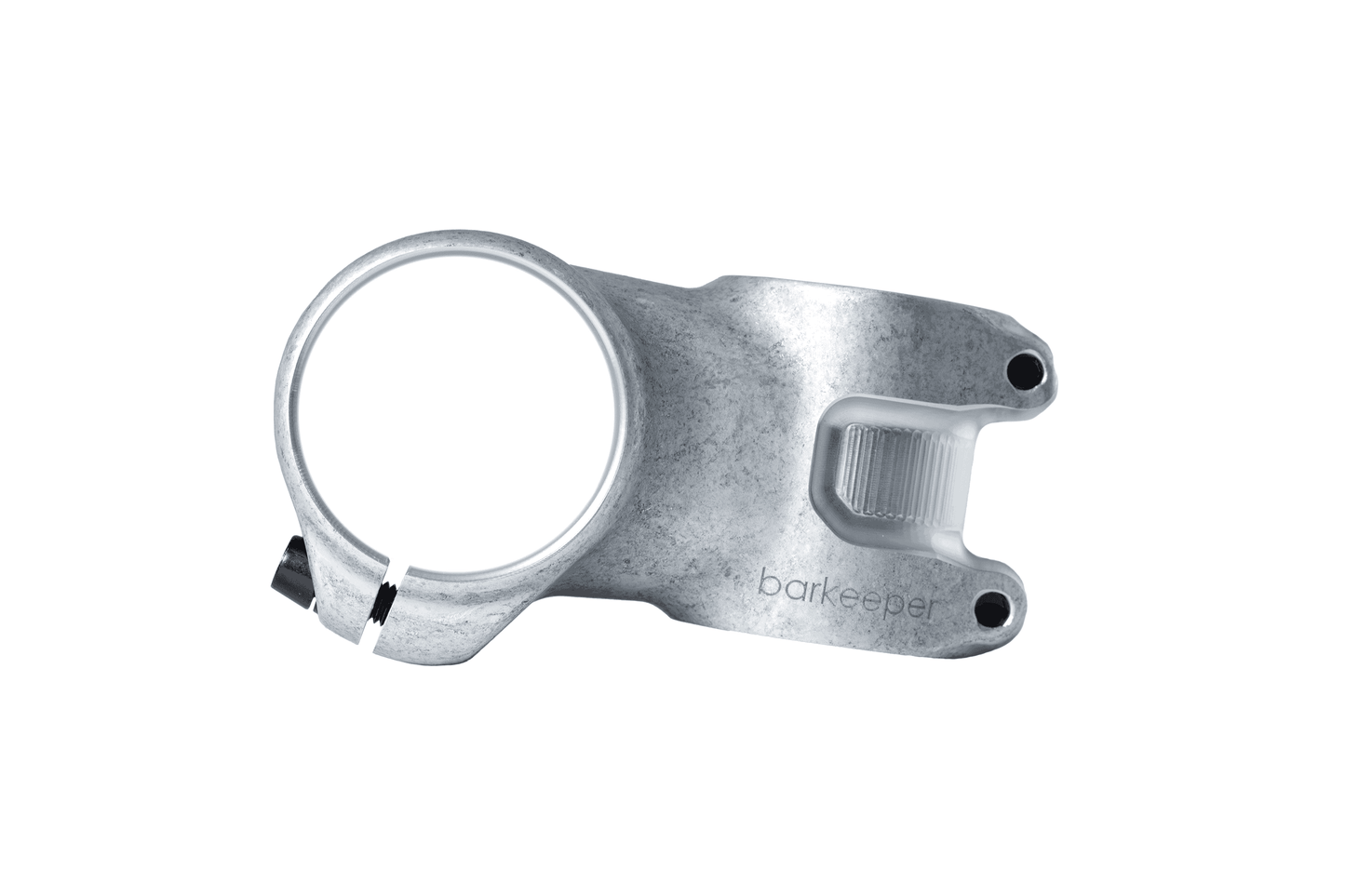

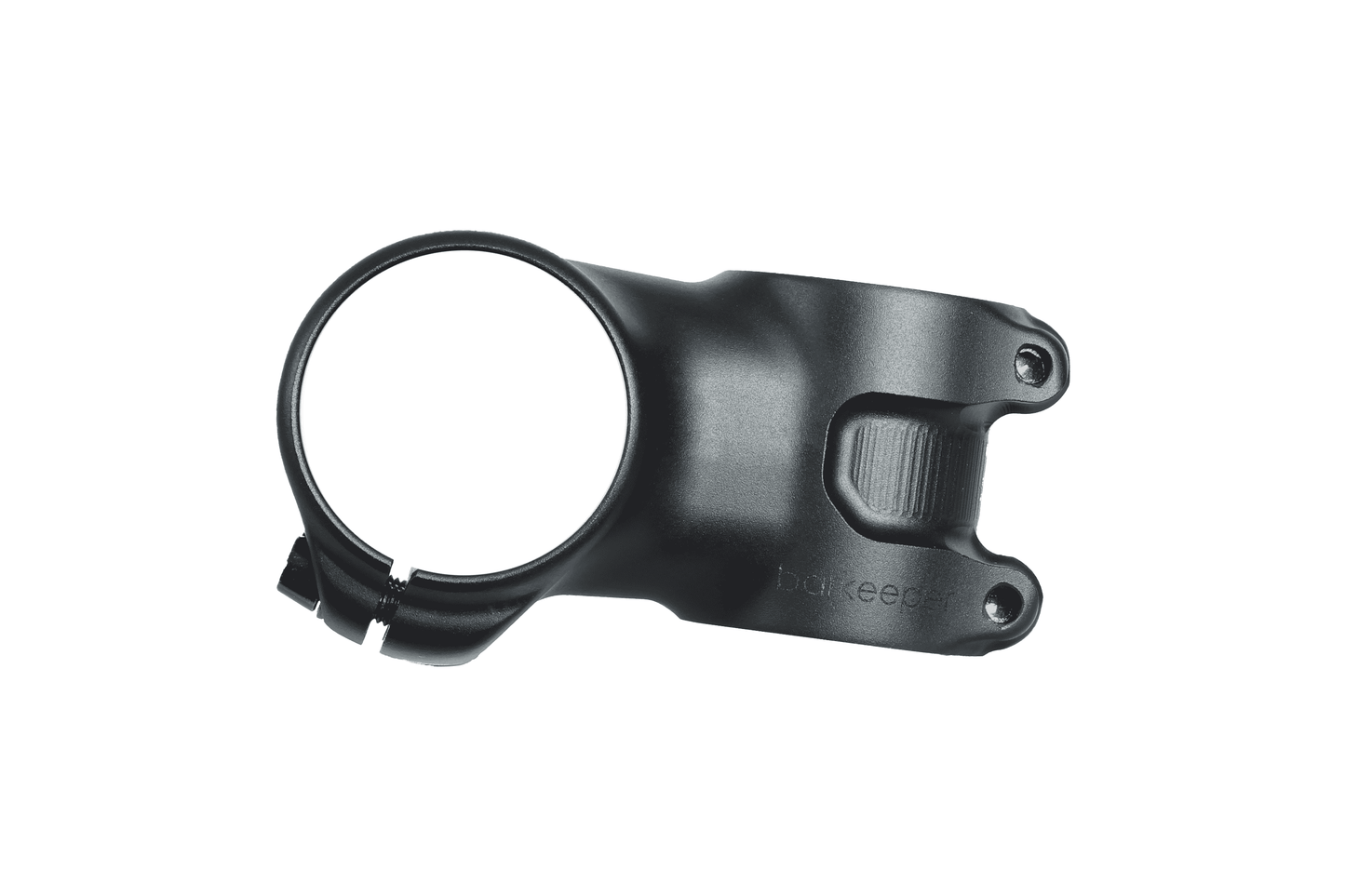

black or transparent (RFF - Raw Forged Finish) anodized coating
In collaboration with the reputable German testing institute EFBE, the Barkeeper not only fulfilled the requirements of the highest Category 5 but, but in some cases significantly exceeded them. This guarantees unrestricted and carefree use on “Trail” and “Enduro” bikes.
Specs:
-
Rise: 0°
-
Stack height: 40mm
-
Clamping width: 50mm
-
Compatible steerer tubes: 1 1/8"
-
Compatible handlebar diameter: 35mm clamping
-
Usage Cassification: Category 5 after ASTM F2043-13 or DIN EN 17406:2021 for handlebars up to 800mm width
-
Material: Aluminum Al-7075, multi-tepered

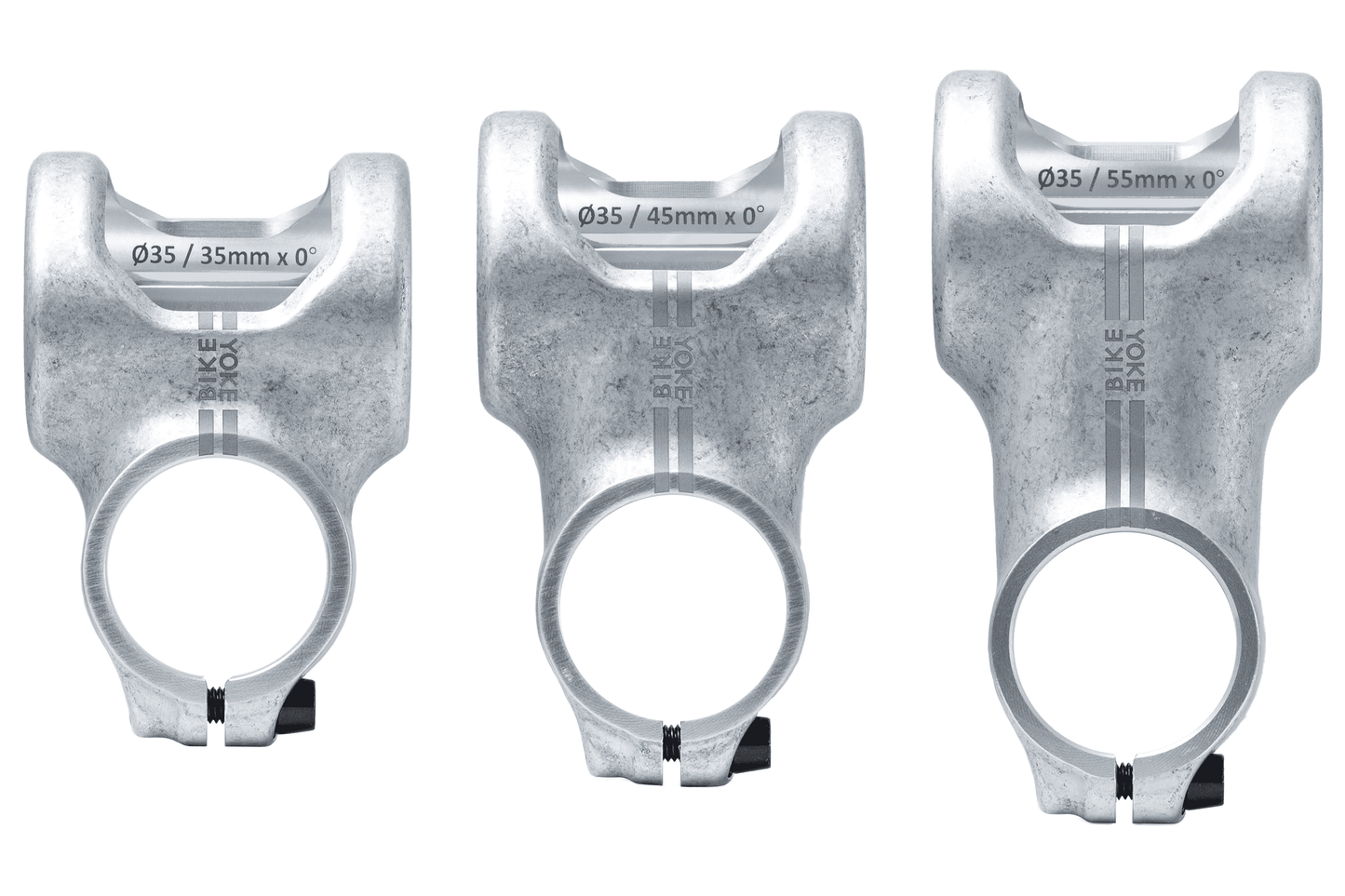

Weights (titanium / steel bolts):
-
35mm length: 80g / 86g
-
45mm length: 90g / 96g
-
55mm length: 106g / 112g
1 set Barkeeper stem includes:
-
1x stem
-
1x set bolts + washers (steell)
-
1x installation aid (wedge)
-
2x installation screw
optional accessories:
-
1x pair of 31.8 reducer sleeves
-
1x set Ti-bolts T25 (black coated)
-
1x Aimy (steerer clamp)
- 1x Topper (headset topcap)
Important Information:
Due to the one-piece design of the stem, this stem is extremely light and stable, but unfortunately not compatible with all handlebar types, which we have deliberately taken into account.
It is difficult to specify compatibility based on Rise alone, as the shape and bend of the handlebar also must be taken into account
Although handlebars with 35 mm Rise have been successfully tested, this does not automatically mean that they are generally compatible with our Barkeeper.
However, we assume that the majority of handlebars with a rise of up to 30mm should fit.
On the "compatible Handlebars" tab, you'll find a list maintained and updated to the best of our knowledge. This list is not binding and is for reference only.
If you have successfully installed a handlebar, kindly inform us to include it in the list.
Please make sure to follow the installation instructions in the manual!
