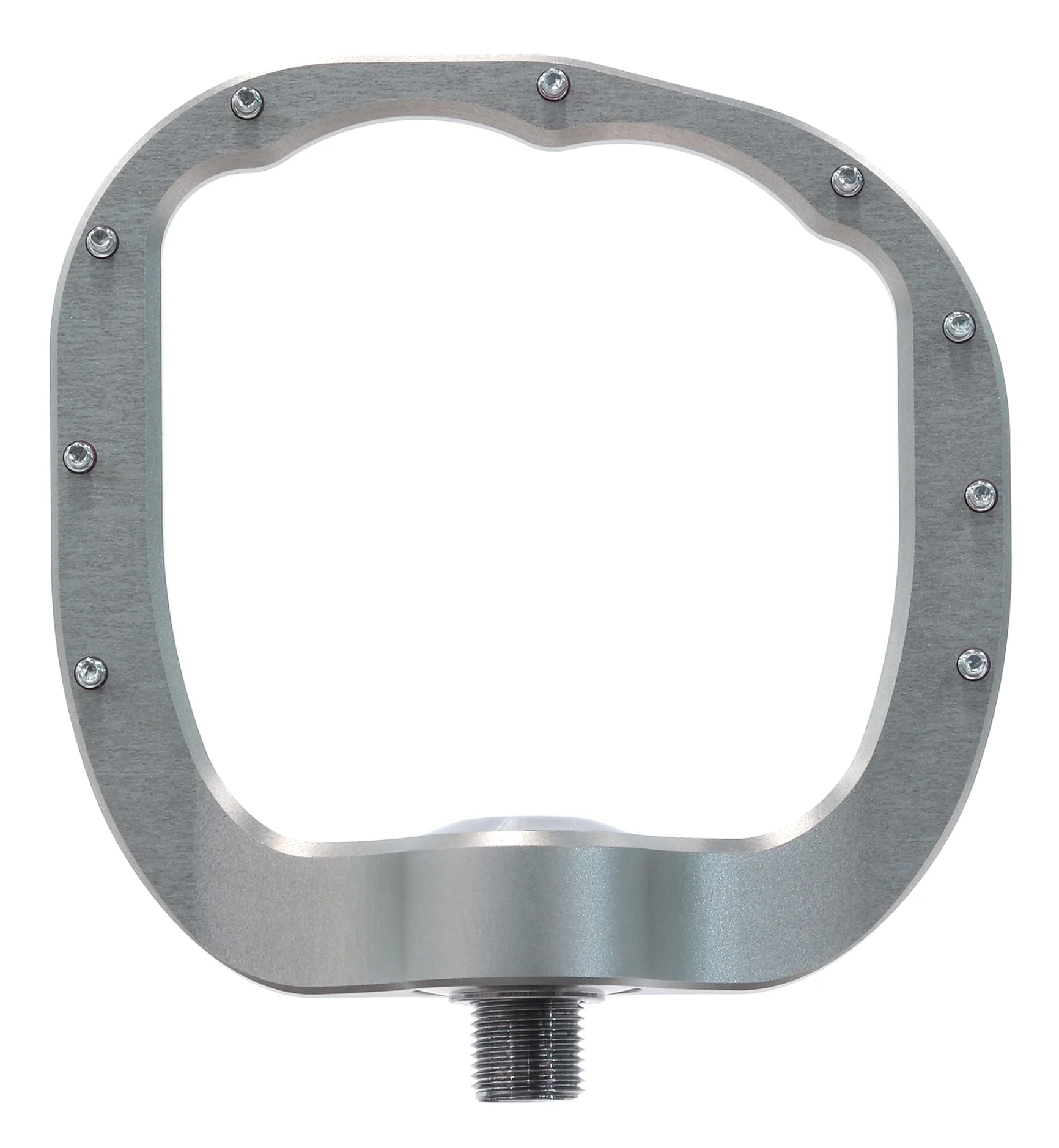

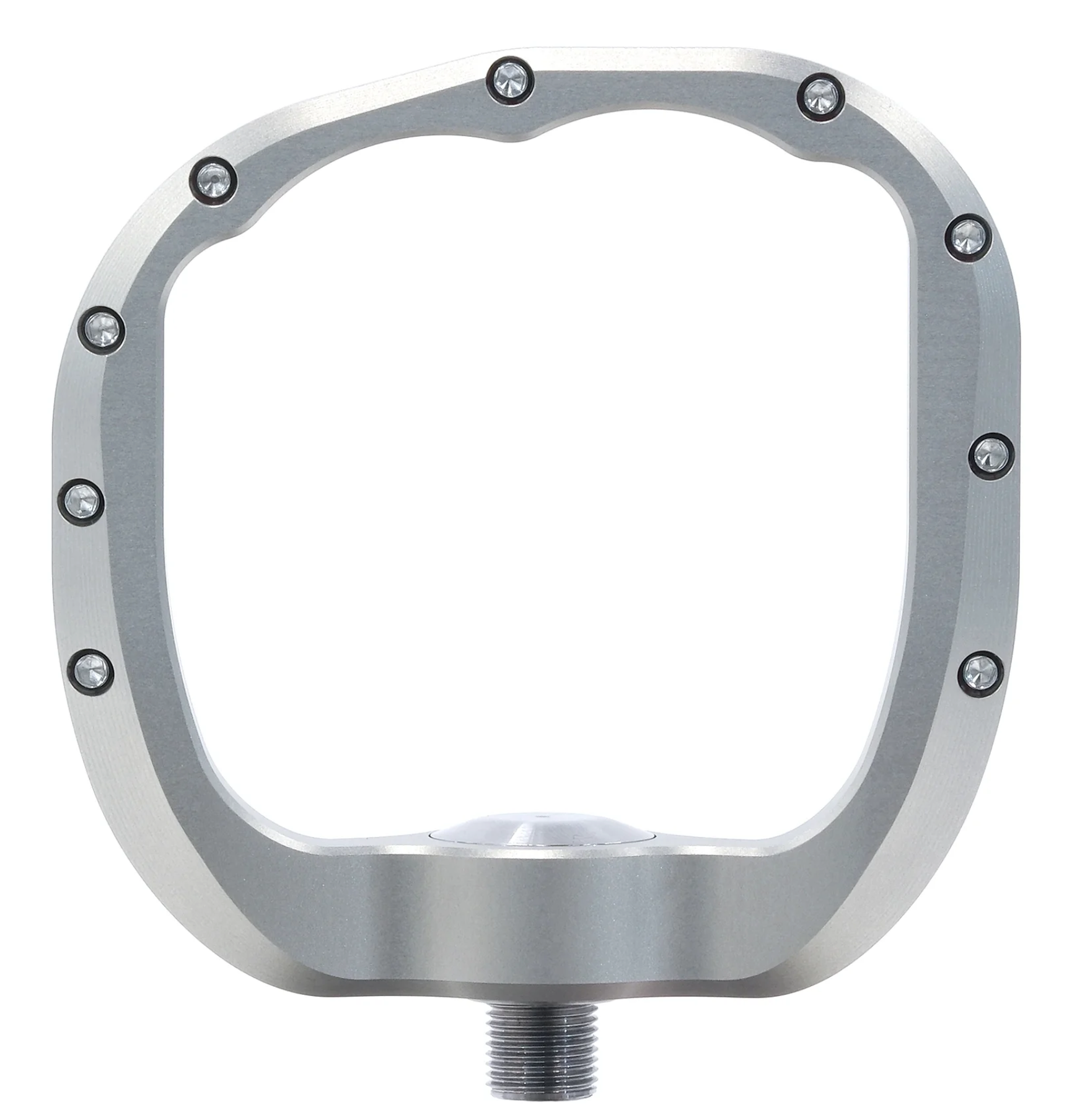

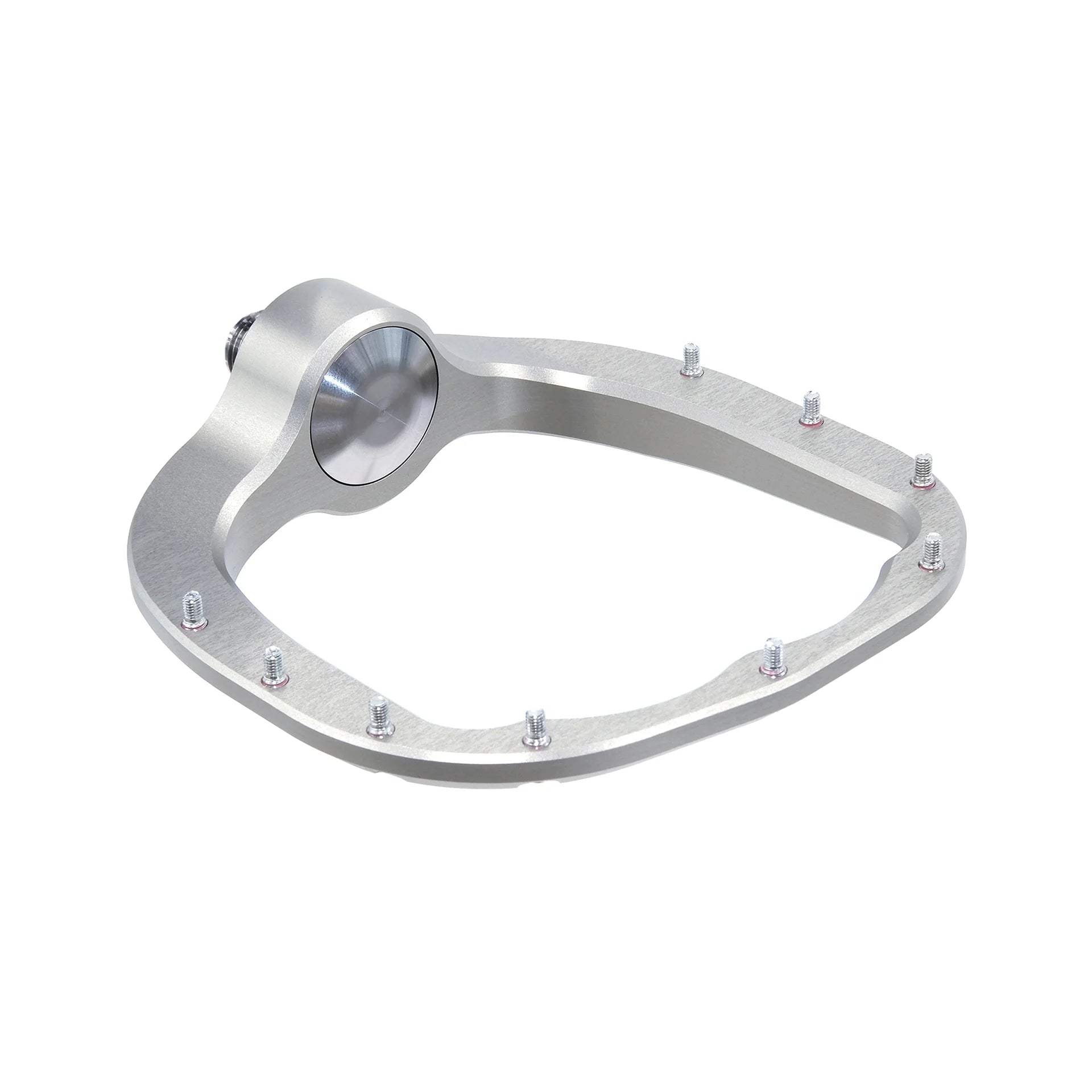

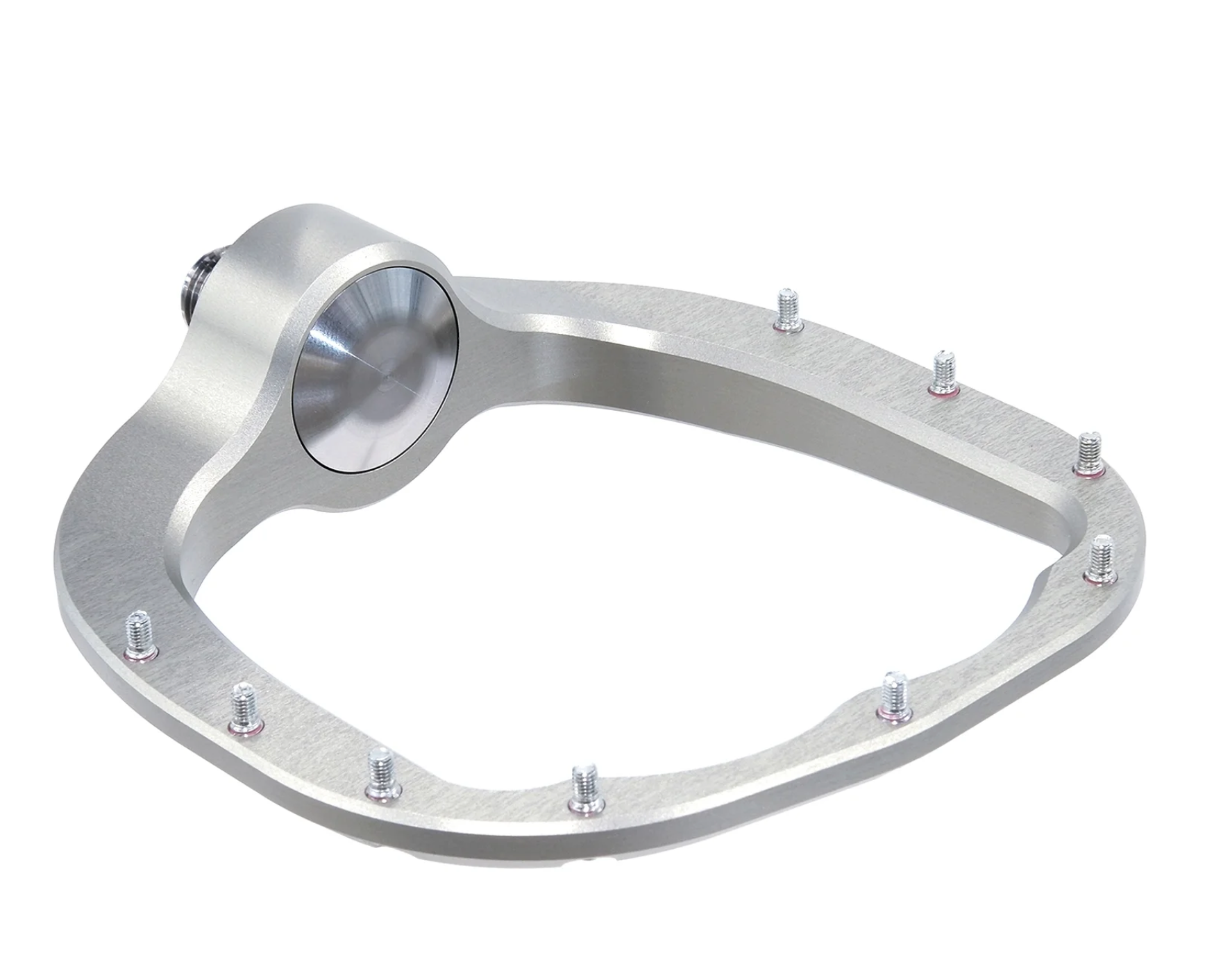

OUTLIER Pendulum Pedal

Specifications:

  • Platform Size: 120mm long and 115mm wide (100mm end of axle to outside edge)

  • Thickness: 7.5-14mm

  • Pedal Drop: -7mm from centre of the axle

  • Material: 7075 Aluminum

  • Pins: 9 per pedal, M4, protrude 5.0, 4 extra pins provided

  • Bearings: 7902

  • Colors: Black // Raw (Clear Anodized)

  • Weight: 454g per pair



 What's in the box:

  • Pair of pedals L/R

  • 18 preinstalled pins

  • 4 replacement pins



Things to Note:

    • We recommend these pedals for shoes size 7 US men's, 8.5 US women’s, 40 EU, 7 UK and larger

    • Please torque our pedals to 30-35NM. Do not overtorque

    • Certain cranks and crank boot combinations may require a pedal washer

    • Some customers may find themselves lowering their dropper posts ~12mm to accomodate for the lower ride height

    • Some riders enjoy these pedals with shorter crank arms

    • These pedals are designed for rider weights up to 110kg or 250lbs

    • We offer a 2 year warranty on bodies, axles and spacers.

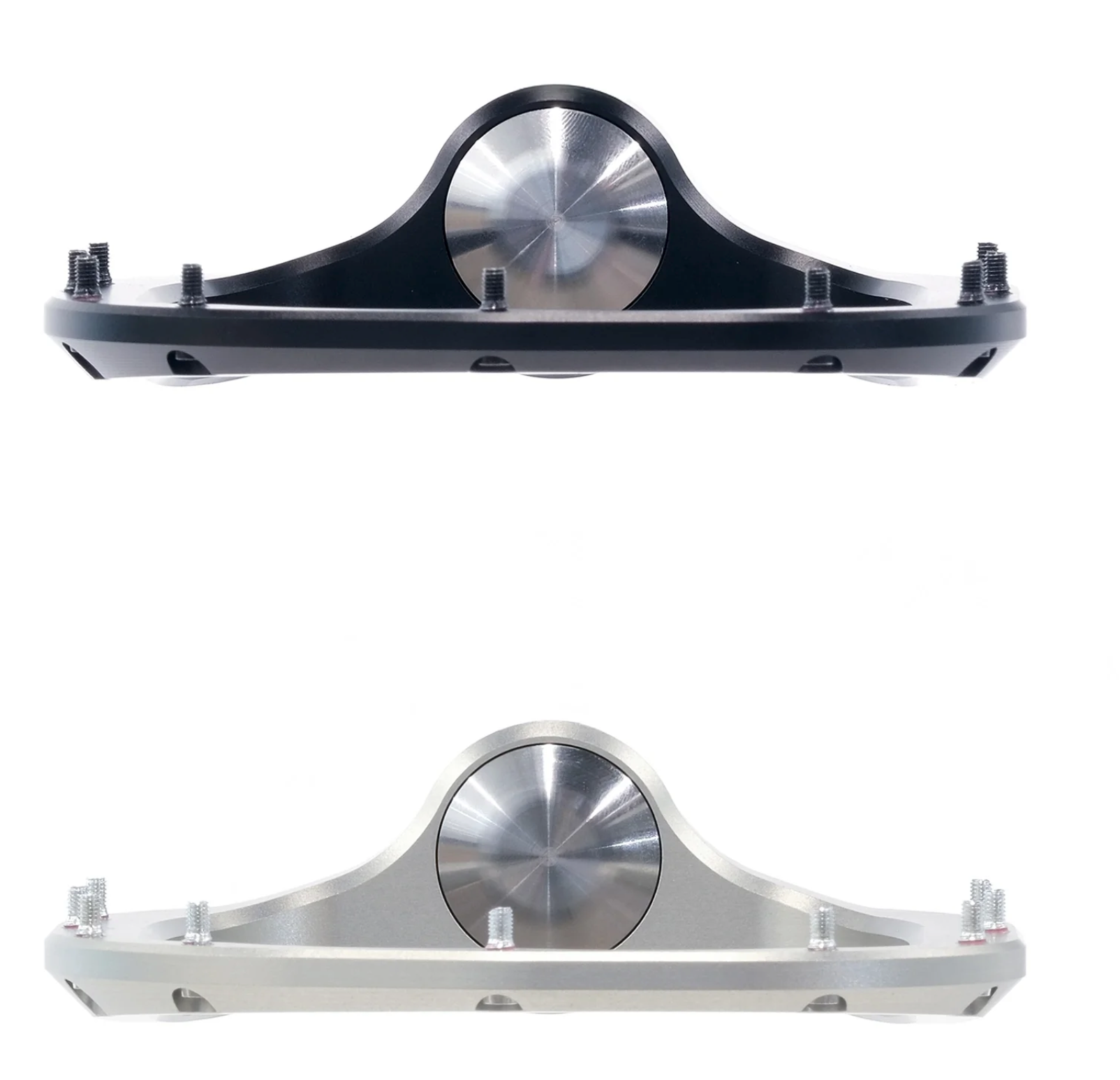

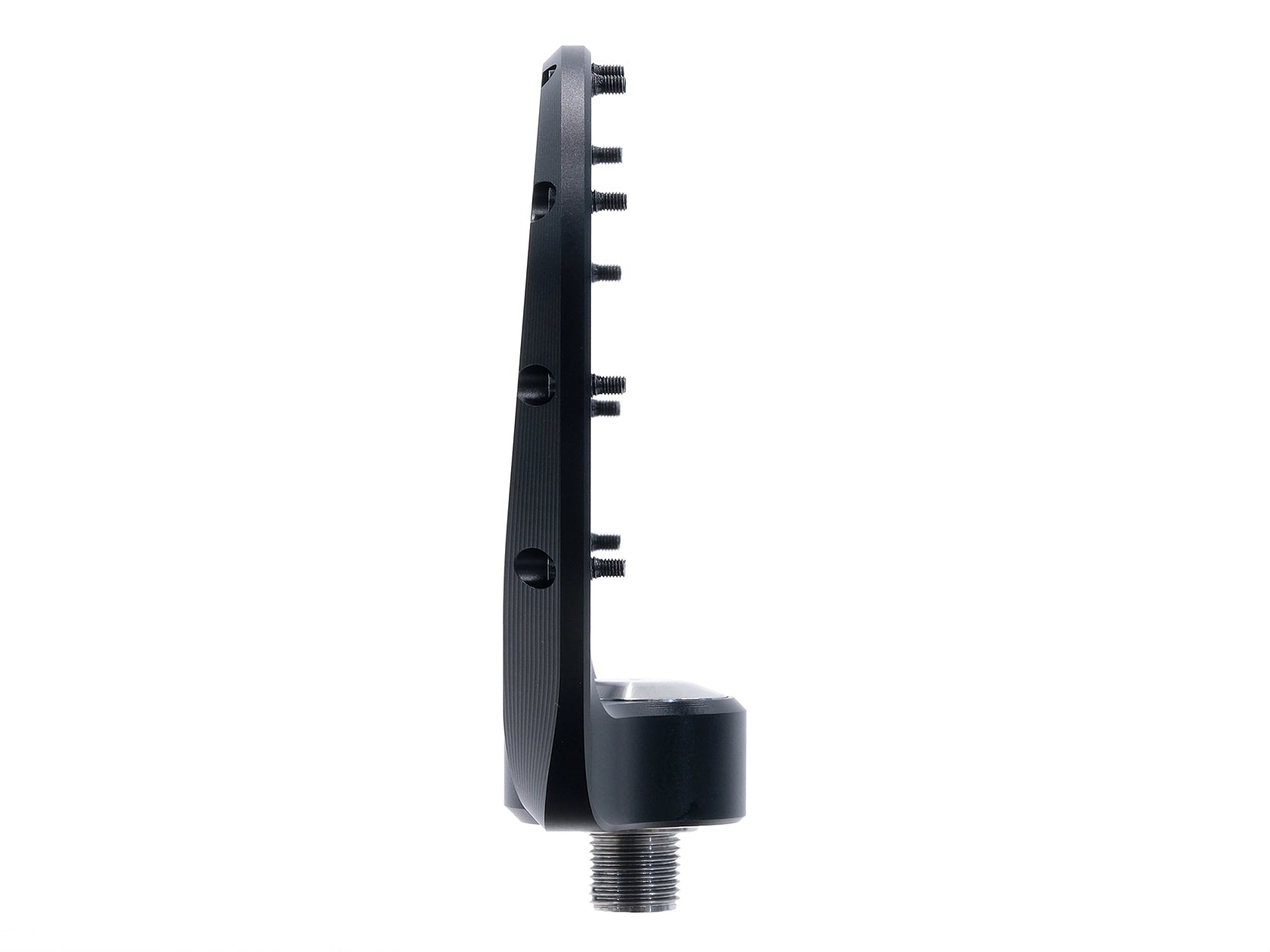

Low & Stable

The base of our platform sits 7mm below the centre of the axle. Most pedals place the platform ~6mm above the centre of the axle. This effectively lowers the rider's centre of mass ~13mm offering significant stability, and control. During sudden decelerations, the pedal acts as a pendulum and swings forward cradling the rider's foot in a heels-down position. In the event that you take your foot off a pedal, our pedals are self-righting

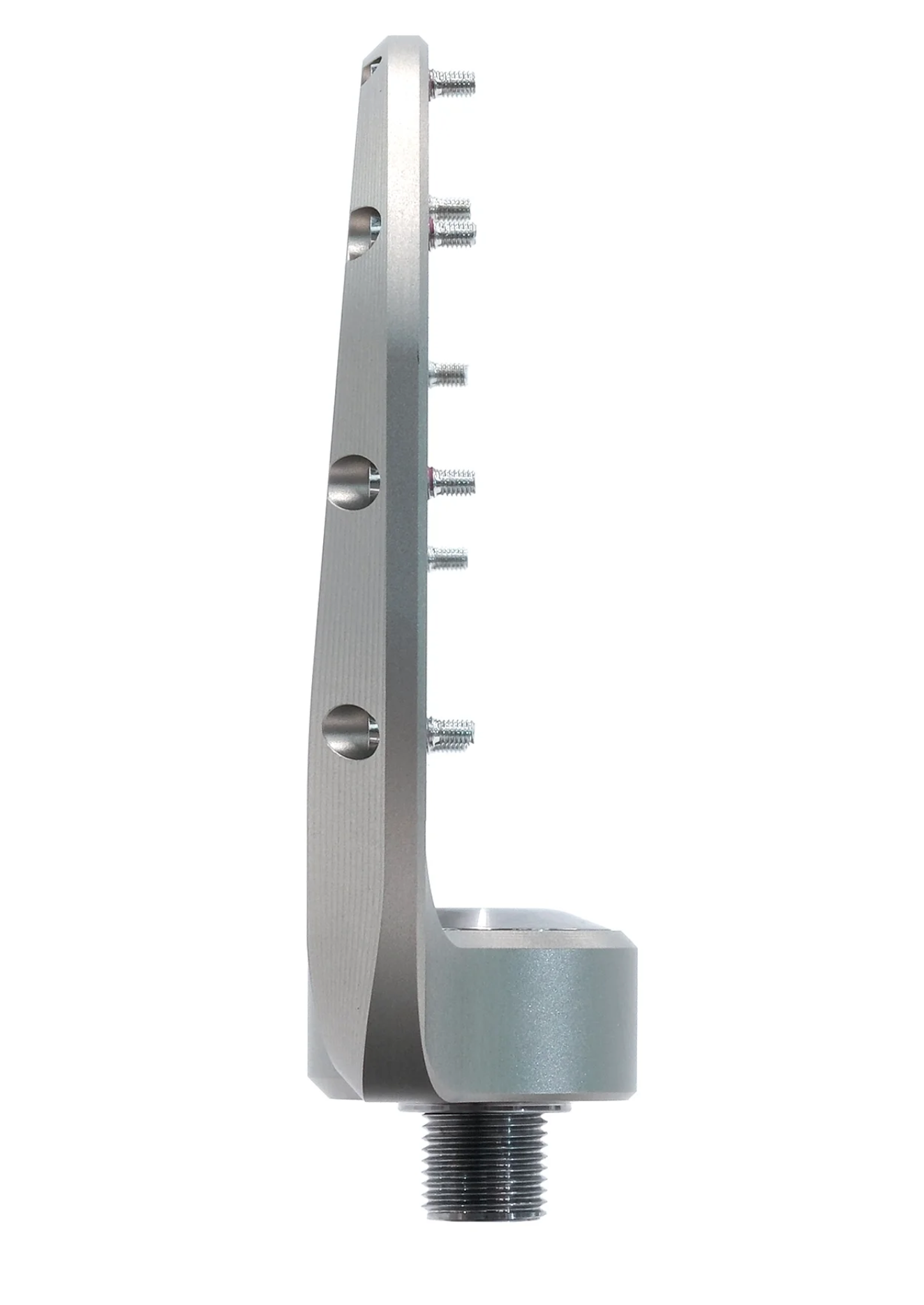

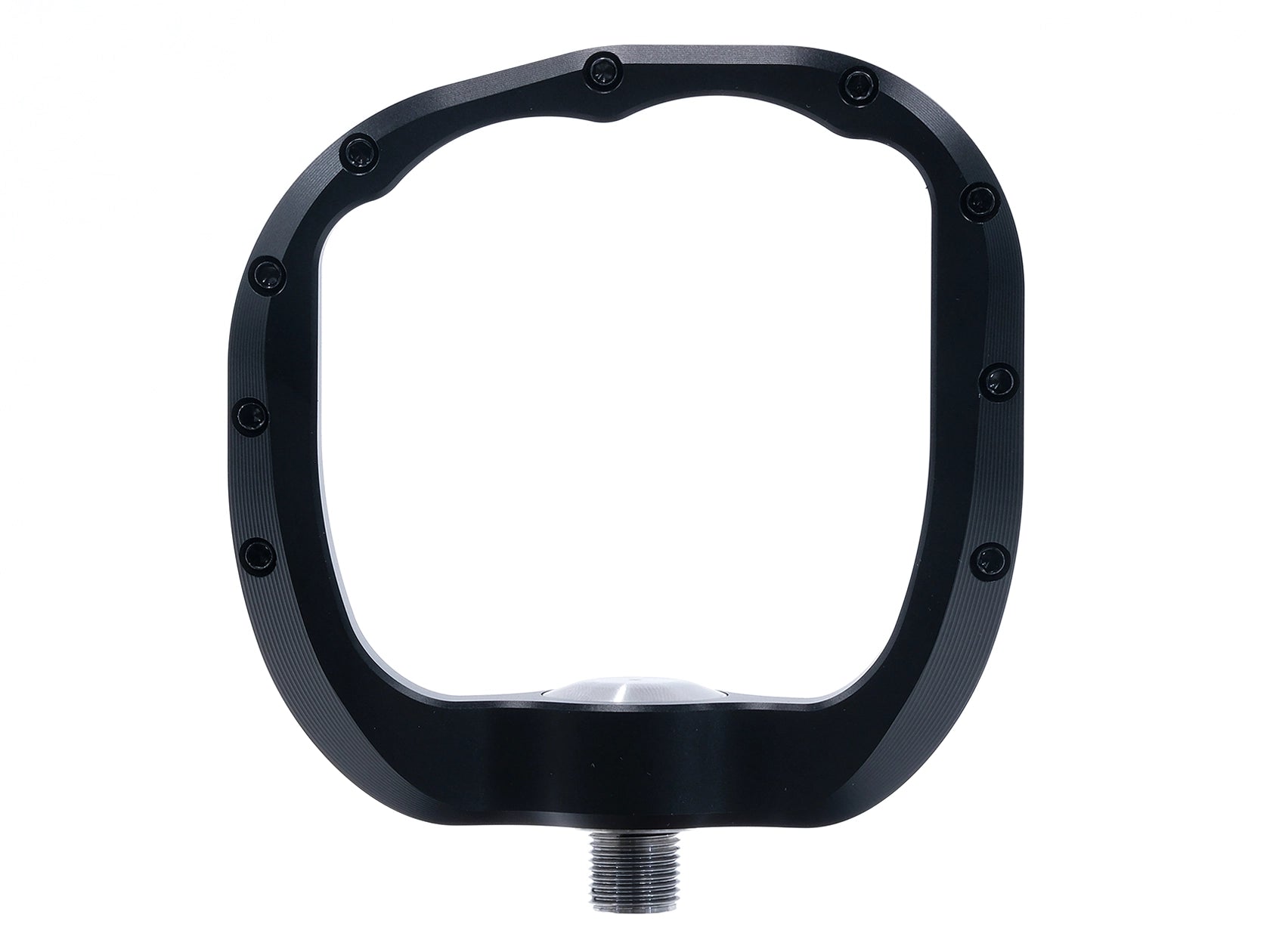

Thin & Smooth

Without the requirement of traction on both sides, we were able to make them a mere 7.5mm thin at the outer edge and optimize the shape to glance off of roots and rocks

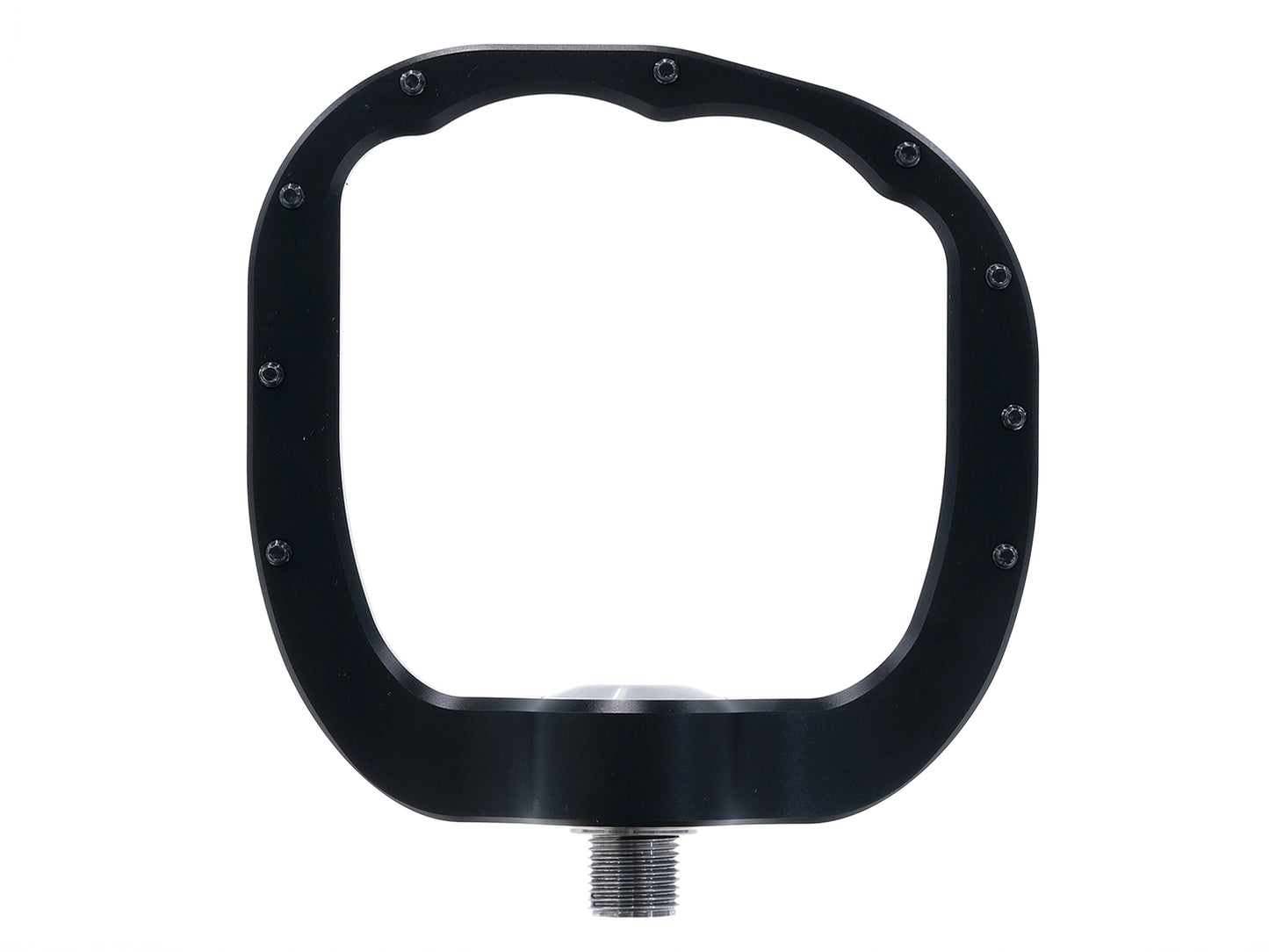

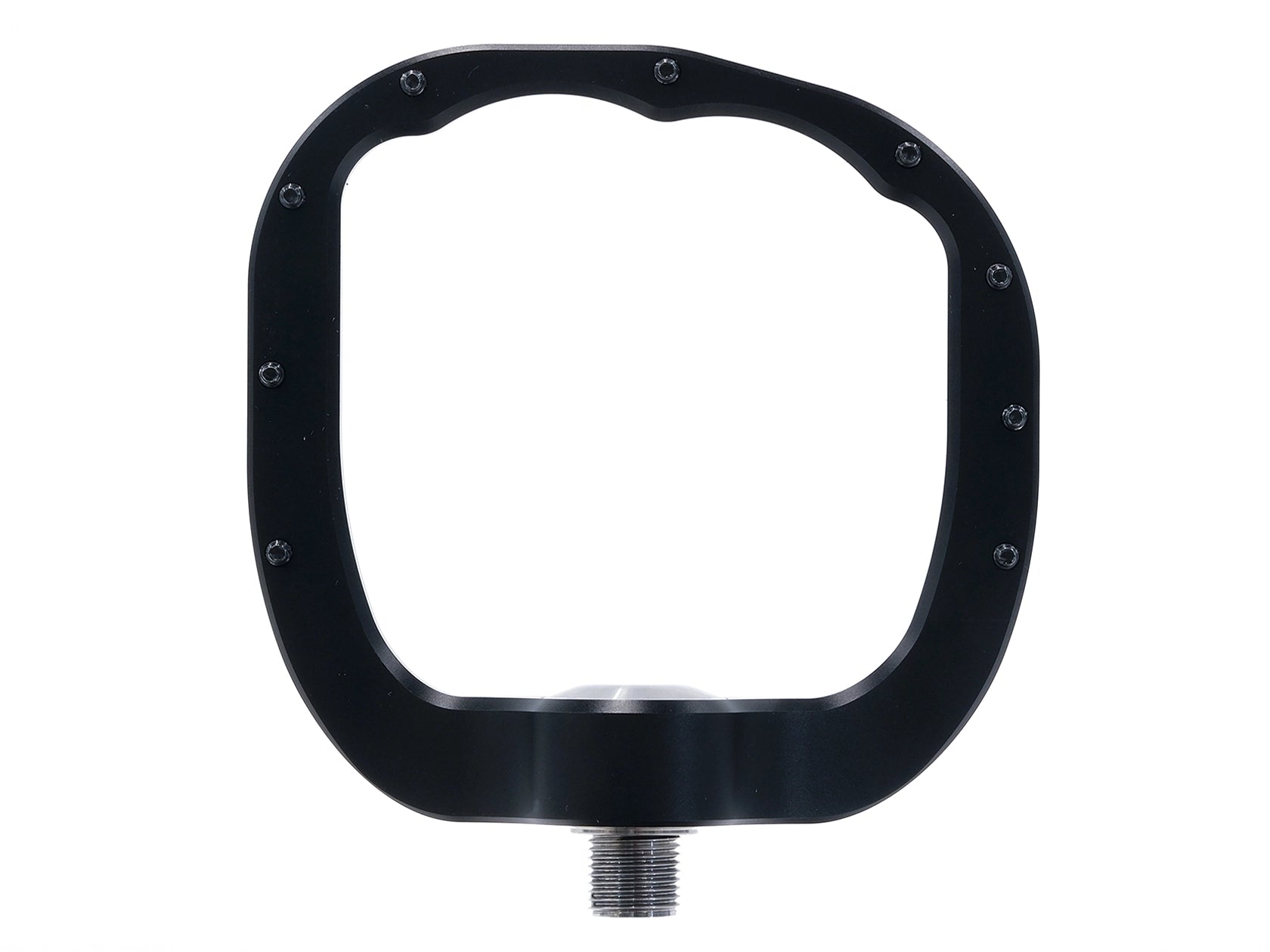

Concave & Grippy

Without an axle underfoot, the shoe is free to flex a small amount, offering an exceptional amount of grip on the pins and a locked-in pedal feel

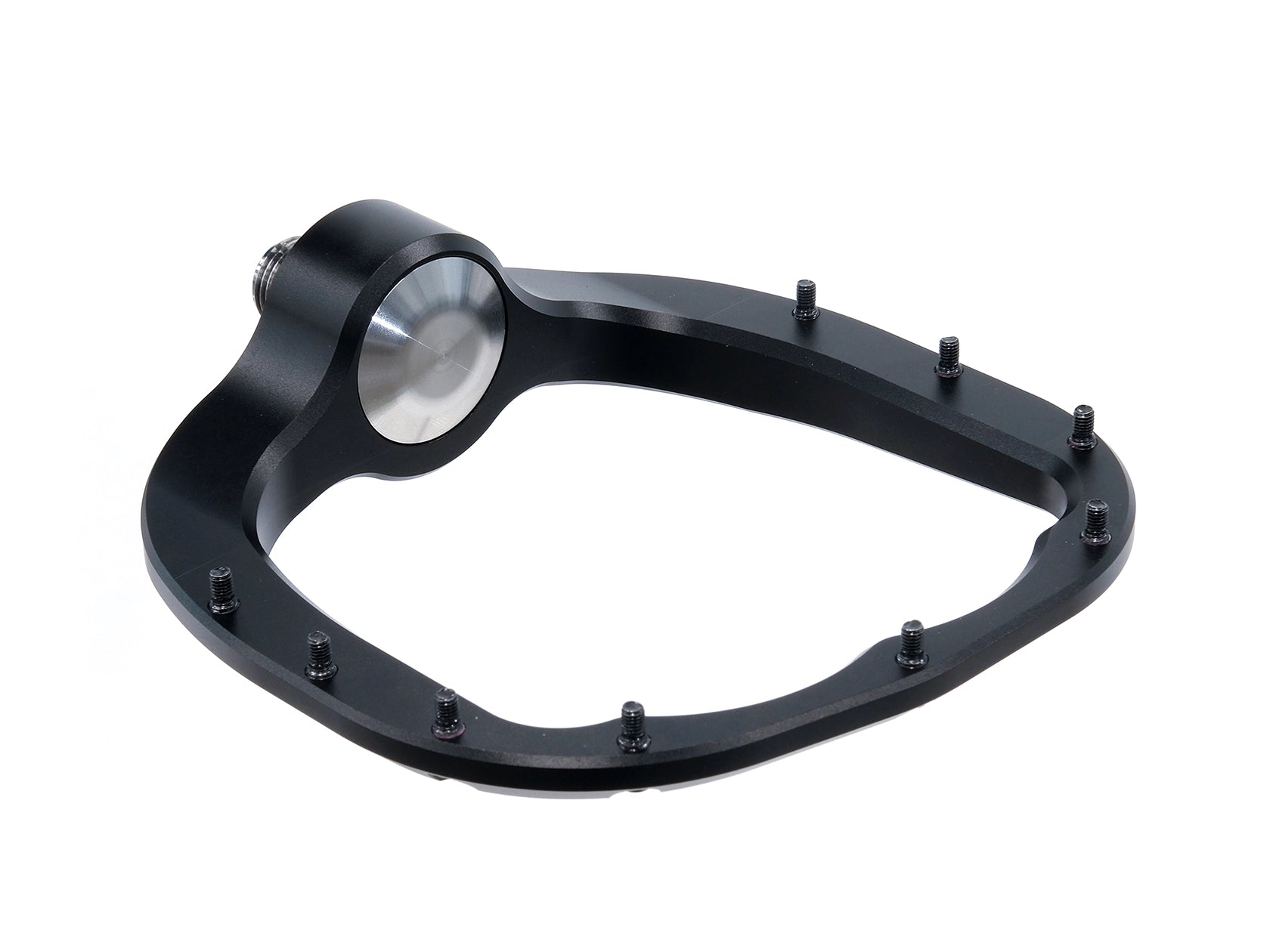

Strong & Serviceable

Our pedal bodies are made out of 7075 aluminum. Each pedal houses 2 robust 7902 bearings. Total pedal weight is 227g
