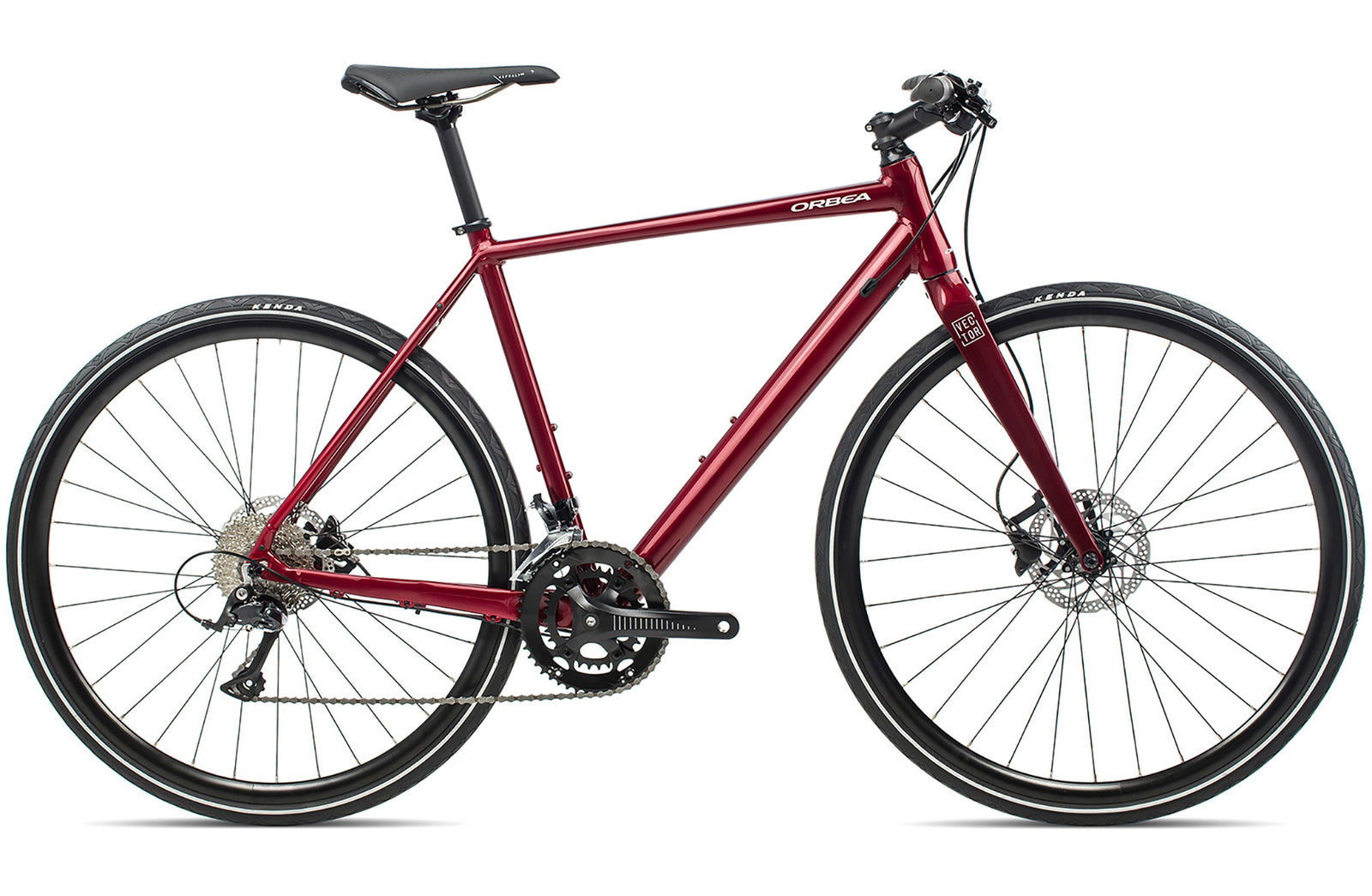

ORBEA VECTOR 20

ONE BIKE - MANY LIVES.

Vector is at home in the city or on open roads winding through the hills.

A blend of low weight and durability usually reserved for more expensive machines, Vector is the perfect tool for doing whatever you like - whether it’s commuting from work or taking a few extra minutes for a detour in the park.

Vector is Orbea’s new multi-role bike that emphasises versatility. A companion for every part of your life.

WHAT THE VECTOR IS ABOUT

The Vector is built for speed and efficiency. It’s a bike that is designed for covering distance fast - it’s named Vector after all. It’s really going to appeal to those who are commuting or who can’t do without speed. They need to push a harder gear.

So, travelling to work. Covering long distances. Intermediate riders. This is what and whom the Vector is for.

AVAILABLE COLOURS
  • Night Black (Gloss)
  • Urban Green (Gloss)
  • Metallic Dark Red (Gloss)
  • Blue (Gloss)

FRAMESET
Frame Orbea Urban Speed, Aluminium 6000, Orbea Tube Shaping, Flat Mount Disc Brake, 135x9 QR, Carrier and Mudguard compatible, max 700x40C, Inner Cable routing.
Fork Speed 400mm Alloy Flat mount
Headset VP-Z104PD 1-1/8” Semi-Cartridge
DRIVETRAIN
Crankset Orbea Alloy 32x48t
Shifters Shimano Sora
Cassette Shimano HG400 11-34t 9-Speed
Rear Derailleur Shimano Sora 3000GS
Front Derailleur Shimano Sora 3000
Chain KMC X9
COCKPIT
Handlebar Alloy 31.8mm Riser 640mm
Stem Alloy 31.8mm interface 7º
BRAKES
Brakes Shimano MT200 Hydraulic Disc
WHEELS
Wheels Orbea Airline Corsa Disc 700X19c
Tyres Kenda K1098 700x32 Reflective Tape
COMPONENTS
Seatpost Alloy 27.2 Offset 0
Saddle Selle Royal Asphalt GR
SIZING
Size Crank Stem Handlebar
XS 170 90 640
S 170 90 640
M 170 90 640
L 170 90 640
XL 170 90 640
SIZE GUIDE — VECTOR
Size Rider Height (cm) Rider Height (in)
XS 150-160 59.1”-63.0”
S 160-170 63.0”-66.9”
M 170-180 66.9”-70.9”
L 180-190 70.9”-74.8”
XL 190-200 74.8”-78.7”





GEOMETRY — VECTOR (mm / degrees)
Measurement XS S M L XL
1 - Seat Tube (C-T) 430 480 525 555 580
2 - Top Tube (EFF) 521 546 559 580 601
3 - Head Tube 109 127 150 170 200
4 - Chainstay 435 435 435 435 435
5 - BB Height 281 281 283 283 285
6 - BB Drop 70 70 68 68 66
7 - Wheelbase 1021 1037 1052 1063 1075
8 - Head Angle 71º 71º 71º 71.5º 72º
9 - Seat Angle 75º 74º 74º 73.5º 73º
10 - Standover 738 768 800 824 852
11 - Reach 378 388 395 405 410
12 - Stack 535 552 571 592 625
13 - Fork Length 400 400 400 400 400
